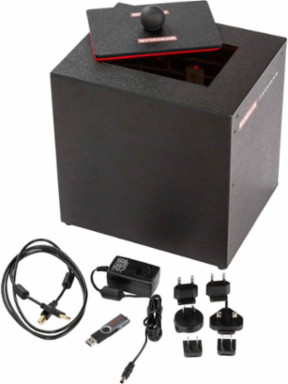

Brady 149140 Desktop Barcode Verifier, 11 Inch x 9 Inch, High-Resolution Inspection 50 Microns
- MPN: 149140
- UPC: 754473588595
- PPN: BRD-149140
- UNSPSC: 43211701
CAD
$11569.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The LVS-9510 desktop barcode verifier enables multi-syntax multipurpose off-line barcode compliance to ISO/IEC standards.
Features
- Simultaneous barcode verification of 1D and 2D symbologies
- Fast ISO print quality grades
- Large field of view range 3 in. to more than 6 in.
- GS1 Certified
- 21 CFR Part 11 compliant for FDA regulated industries
- High-resolution inspection down to 50 microns of barcode height
Specifications
Key Specifications
| Brand Name | Brady® |
|---|---|
| Enables Industry Compliance | All Supported ISO/IEC Symbology Specs; ISO/IEC 15415, 15416; ISO/IEC 15426-1, 15426-2; ISO/IEC TR 29158 (DPM Cat 0) |
| Manufacturer Name | Microscan |
| Primary Noun, Basic Function | Barcode Verifier |
| Supported Symbologies - 2D | Aztec; Databar with CC-A, CC-B, or CC-C; EAN/JAN-13 with CC-A, CC-B, or CC-C; EAN/JAN-8 with CC-A, CC-B, or CC-C; ECC-200 (Datamatrix) including EIB CMDM, French CIP, GS1 Data Matrix, NTIN and PPN; GS1-128 with CC-A, CC-B, or CC-C; MaxiCode; Micro PDF417; Micro QR Code; PDF417; QR Code; UPC-A with CC-A, CC-B, or CC-C; UPC-E with CC-A, CC-B, or CC-C |
| Dimensions | 11 in H x 11 in W x 9 in D |
| Sign Size-General | 11 in x 11 in |
| Connectivity Options | USB 2.0 |
|---|---|
| Illumination - Light Source | White LEDs, Red Filter (660nm) |
| Minimum Barcode X-Dimension | 1D = 4.0 mils (0.1mm), 2D = 5.9 mils (0.15mm) |
| Supported Symbologies - 1D | 4SB (4-State); Codabar; Code 128; Code 39; Code 93; Databar; Databar - Expanded, Limited, Stacked, Truncated, Omnidirectional; EAN/JAN-13; EAN/JAN-8; EIB (Enterprise Intel Barcode); GS1-128; Hanxin Code; HIBC; Interleaved 2 of 5 (ITF); ITF-14; Japan Post; MSI Plessey; Pharmacode - Italian and Laetus; PZN 7 and PZN 8 |
| Depth (in/ft/yd) | 9 in |
| Height (in/ft/yd) | 11 in |
| Width (in/ft/yd) | 11 in |
Regulatory Information
| California Prop 65 | Due to inconclusive data, this product may not ship to California at this time |
|---|
