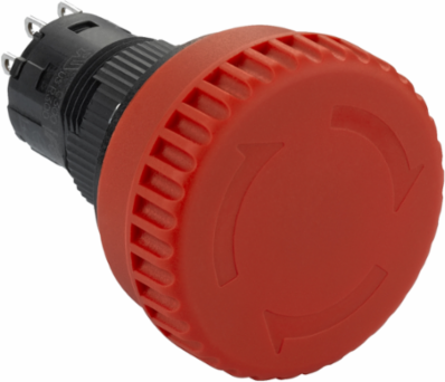

Schneider Electric XB6ETI523P Complete Illuminated Mushroom Head Push Button, 16mm, Red, IP65, 2 NC Contacts
- MPN: XB6ETI523P
- PPN: SCH-XB6ETI523P
CAD
$75.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB6 illuminated emergency stop push button is part of the range diameter 16mm plastic, Harmony XB6 monolithic. It has a a circular head shape, and is supplied with a turn/pull to release red mushroom, diameter 32mm, with trigger action. It features 2 NC slow break contacts and faston connection type. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 32mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It weighs 20g. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Japan, United States
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Reset
- pull to release, turn to release
- Certificate Agency
- TÜV, UR, CCC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0036484217, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0097788204, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2312039EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2129
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Bezel Material
- plastic
- Contacts Type And Composition
- 2 NC
- Electrical Durability
- 1000000 cycles50000 cycles, DC-13
- Light Source
- LED 24 V DC polarised
- Mechanical Durability
- 100000 cycles
- Operator Profile
- red mushroom Ø 32 mm
- Product Or Component Type
- complete illuminated mushroom head push-button
- Returnability
- No
- Shock Resistance
- 500 m/s²mechanical durability
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 0.3 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This Harmony XB6 red, complete emergency stop push button is part of the range diameter 16mm plastic, Harmony XB6 modular. It has a circular head shape, with a turn to release mushroom, diameter 30mm, with trigger action and mechanical latching. It features 1 NO + 2 NC slow break contacts and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. It has energy consumption of 0.0675 W at use rate of 71% during 10 years. Product meets the international standards such as EN/IEC 60947-1 and EN/IEC 60204 -1.
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US
- [Ith] Conventional Free Air Thermal Current
- 5 A
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV
- Short-circuit Protection
- 6 A fuse gG IEC 60269
- Package Weight(Lbs)
- 27.9 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Vibration Resistance+/- 0.7 mm (f= 10-500 Hz), +/- 0.7 mm (f= 10-500 Hz)+/- 0.7 mm (f= 10-500 Hz), +/- 0.7 mm (f= 10-500 Hz)
[Ie] Rated Operational Current0.3 A 240 V, AC-15, C300 IEC 60947-5-11.5 A 120 V, AC-12, C300 IEC 60947-5-10.3 A 120 V, AC-15, C300 IEC 60947-5-11 A 240 V, AC-12, C300 IEC 60947-5-1, 1 A 24 V, DC-12, R300 IEC 60947-5-10.7 A 24 V, DC-13, R300 IEC 60947-5-10.2 A 125 V, DC-12, R300 IEC 60947-5-1, 0.15 A 125 V, DC-13, R300 IEC 60947-5-1
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0494909721
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.2 kg CO2 eq., 0.2270006192
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility CodeXB6
Device Short NameXB6E
Insulation Resistance< 100 MOhm< 100 MOhm
MarkingCE
Mounting Diameter16 mm
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductHarmony XB6E
Shape Of Signaling Unit Headround
Software Versionv5.9.4
Tightening Torque0.6-1 N.m
Type Of Operatortrigger action
Pep CodeENVPEP2312039EN
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US
[Ui] Rated Insulation Voltage250 V 3)
Connections - Terminalssolder terminal <= 0.75 mm² 19 AWG
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509033
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C, -10-55 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 0.2899188334
- Environmental Disclosure
- ENVPEP2312039EN
- Ip Degree Of Protection
- IP65 IEC 60529
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2312039EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2312039EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- complete illuminated mushroom head push-button
Range Of ProductHarmony XB6E
ETIM
- ETIM 8
- EC002034
ETIM 9EC002034
Loading video…
