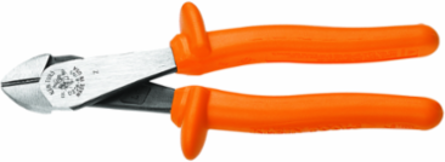

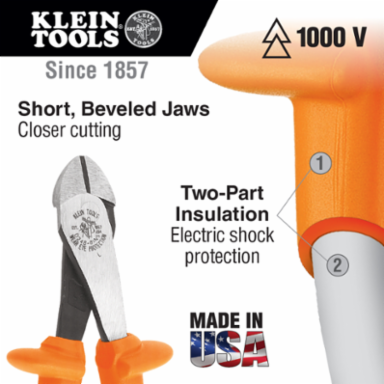

Klein Tools D228-8-INS Insulated Diagonal Cutting Pliers 8 Inch, Induction Hardened Steel, 1000V Rating
Klein Tools D228-8-INS Insulated Diagonal Cutting Pliers 8 Inch, Induction Hardened Steel, 1000V Rating
- MPN: D228-8-INS
- UPC: 092644720420
- PPN: KLT-D228-8-INS
- UNSPSC: 27112135
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$93.25/ EA
Description
These High-Leverage Insulated Diagonal-Cutting pliers are 1000V rated for safety on the job. The thick, exceptionally tough white inner layer coating is bonded to the tool. Integral thumb guards prevent hand contact with conductive parts. The bright orange handles make this tool comfortable to use all day and easy to identify in the field. The durable, molded insulation meets or exceeds IEC 60900 and ASTM F1505 standards for insulated tools. Cutting knives are induction hardened for long life.
Features
- Individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated tools, and clearly marked with the official 1000-volt rating symbol
- Two layers of insulation provide protection against electric shock
- Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
- A flame retardant, impact-resistant, bright orange outer coating
- High-leverage design. Rivet is closer to the cutting edge for 36-percent greater cutting power than other plier designs
- Integral guards help prevent hand contact with conductive parts
- Made of forged steel for maximum durability
- Flame Retardant and Impact Resistant Handle
- Klein Tools Pliers are individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated tools, and clearly marked with the official 1000-volt rating symbol
- Made in USA
- Klein Tools Pliers are individually tested to meet or exceed ASTM F1505-16(2021) and IEC 60900:2018 standards for insulated tools, and clearly marked with the official 1000-volt rating symbol
Specifications
Specifications
- Country of Origin
- United States
- Style Name
- Standard
- Hande Finish
- 2-Layer Insulation
- Handle Finish
- 2-Layer Insulation
- Cut Style
- Diagonal-Cutting
- Insulated
- Yes
- Handle Length
- 4.9" (12.4 cm)
- Overall Length
- 8.24" (20.9 cm)
- Type
- Diagonal Cutting Pliers
- Application
- ACSR, Screws, Nails and Most Hardened Wire
- Material
- Induction Hardened Steel
- Width
- 3.1000 in
- Weight
- 0.7000 lbs
ConfigurationTapered Nose
ItemDiagonal-Cutting
Cutting KnivesStandard
Nose TypeTapered
StandardIEC 60900 and ASTM F1505
Jaw Width1.25" (3.2 cm)
Handle ColorOrange
Jaw Length0.781" (2 cm)
Jaw Thickness0.46" (1.2 cm)
Joint TypeHot-Riveted
Height0.4380 in
Depth8.2500 in
