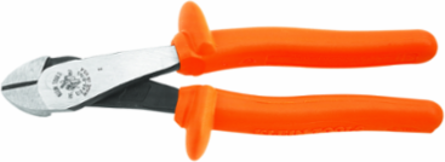

Klein Tools D248-8-INS Diagonal Cutting Pliers, Insulated, High-Leverage, Angled Head, 8-Inch
Klein Tools D248-8-INS Diagonal Cutting Pliers, Insulated, High-Leverage, Angled Head, 8-Inch
- MPN: D248-8-INS
- UPC: 092644720710
- PPN: KLT-D248-8-INS
- UNSPSC: 27112135
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$104.86/ EA
Description

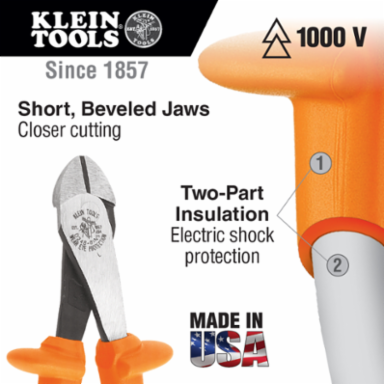

These Insulated Diagonal-Cutting pliers feature two layers of insulation to protect against electric shock. Clearly marked with the official 1000V symbol, these pliers meet or exceed ASTM F1505-16 and IEC 60900:2018 standards for insulated tools. The head is angled to get into confined spaces. The high-leverage design provides 36-percent greater cutting power than other plier designs.
Features
- Diagonal Cutters with flame retardant, impact-resistant, bright orange outer coating with two layers of insulation to protect against electric shock
- Pliers are clearly marked with the official 1000-volt rating symbol
- Durable molded insulation meets or exceeds ASTM F1505-16(2021) and IEC 60900:2018 standards for insulated tools
- Angled head for easier work in confined areas
- Made in USA
- Induction hardened cutting knives for long life
- High-leverage design for 36-percent greater cutting power than other plier designs
- Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
- Integral guards help prevent hand contact with conductive parts
- Hot-riveted joint for smooth action and no handle wobble
- Forged steel for maximum durability
- Flame Retardant and Impact Resistant Handle
Specifications
Specifications
- Insulated
- Yes
- Standard
- IEC 60900 and ASTM F1505
- Joint Type
- Hot-Riveted
- Handle Color
- Orange
- Type
- Diagonal Cutting Pliers
- Nose Type
- Angled
- Jaw Width (Inch)
- 1.25
- Jaw Thickness (Inch)
- 0.46
- Jaw Capacity (cm)
- 2.7
- Jaw Width (cm)
- 3.2
- Overall Length (cm)
- 20.9
- Handle Length (Inch)
- 4.9
- Jaw Capacity (Inch)
- 1.07
- Width
- 4.5000 in
- Weight
- 0.7000 lbs
Cutting KnivesStandard
MaterialInduction Hardened Steel
ApplicationACSR, Screws, Nails and Most Hardened Wire
Cut StyleDiagonal-Cutting
Handle Finish2-Layer Insulation
Weight (g)318
Jaw Length (Inch)0.813
Handle Length (cm)12.4
Overall Length (Inch)8.24
Jaw Thickness (cm)1.2
Jaw Length (cm)2.1
Weight (oz)11.2
Height0.4380 in
Depth8.2500 in
