Dragon Tooth

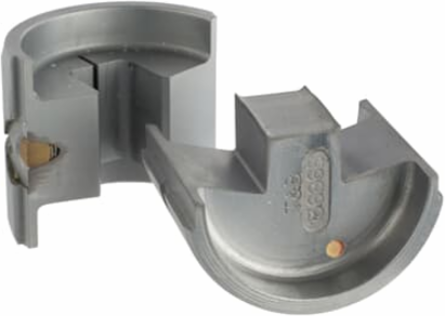

Dragon Tooth 13681B Die

Die
  • MPN: 13681B
  • UPC: 078621078630
  • PPN: T-B-13681B

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

Die for 14 Ton 13100A or 15 Ton TBM15i Hydraulic Tool for Crimping 210214MT Dragon Tooth Terminals

Features

  • Application Tools: 13100A, TBM15I

Specifications

Packaging

Outer Quantity
1
Weight Uom
75 lbs. per 100
Outer Dimensions (inches)2.63x2.56x3.25

North American Specifications (UNSPSC)

UNSPSC
27112820 Lug crimping tool dies
Brand Name
Dragon Tooth
Application
Crimping Dragon Tooth terminal for magnet wire.
Color
Silver
IGCC2427 Lug crimping tool dies
TypeDie
MaterialAlloy Steel

European Specifications (ETIM)

ETIM
EC001282 Insert for crimp tool cable lugs, cable end sleeves, screen connection
Cross section
20,000 - 105,000mm²
Compression shape
Trapezoid compression
ApplicationInsulated varnish wire-cable lugs and connectors
AWG-range13 - 5

Downloads
