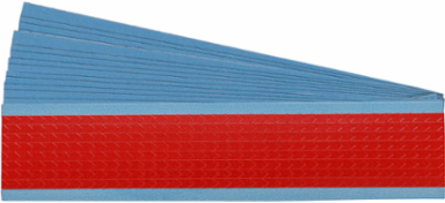

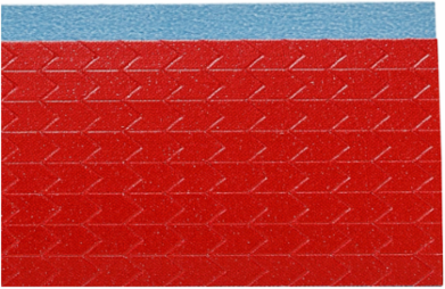

Brady DIA-375-RD-PK Die Cut Inspection Arrows 0.187 in H x 0.375 in W Cloth Red 25 Cards/Pk
- MPN: DIA-375-RD-PK
- UPC: 754473604653
- PPN: BRD-DIA-375-RD-PK
- UNSPSC: 55122002
CAD
$141.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

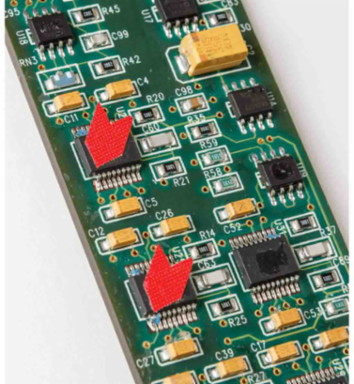

Pin-point rework areas on printed circuit boards with these durable yet repositionable vinyl cloth inspection arrows.
Features
- Small, brightly colored arrows draw the eye to the specific point of need
- Brady B-500 Repositionable Vinyl Cloth holds tightly to surfaces but allows item to be repositioned with ease if necessary
- Excellent flexibility for wrapping around curved surfaces
- Withstands moderate heat, oil, water and dirt
Documentation & Downloads
Specifications
Key Specifications
| Applications | Circuit Board Labeling |
|---|---|
| Cards or Sheets per Pack | 25 |
| Compatible Surface Types | Low Surface Energy |
| Finish | Matte |
| Primary Noun, Basic Function | Label |
| Quantity per Card or Sheet | 280 |
| Total Quantity | 7000 |
| Brady Material Number | B-500 |
| Material | Vinyl Cloth |
| SAP B-Number | B-500 |
| Dimensions (Metric) | 4.7 mm H |
| Height (in/ft/yd) | 0.187 in |
| Maximum Service Temperature °C | 80 °C |
| Minimum Application Temperature °C | 10 °C |
| Minimum Service Temperature °C | -40 °C |
| Sign Size-General | 0.187 in x 0.375 in |
| Thickness (mm/cm/m) | 0.224 mm |
| Width (mm/cm/m) | 9.5 mm |
| Brand Name | Brady® |
|---|---|
| Color | Red |
| Enables Industry Compliance | ASTM D 1000; ASTM D 2979 |
| Label/Media Format | Card |
| Printer and Label Applications | Circuit Board; Inspection Repair |
| Shape | Rectangle |
| Adhesive Type | Repositionable Rubber |
| Label Properties | Repositionable Labels |
| Resistance Properties | Abrasion-Resistant; Corrosion-Resistant; Humidity-Resistant; Oil-Resistant; Temperature-Resistant; UV-Resistant; Water-Resisitant; Weather-Resistant |
| Dimensions | 0.187 in H x 0.375 in W |
| Dimensions 2 | 0.187 in H x 0.375 in W |
| Height (mm/cm/m) | 4.7 mm |
| Maximum Service Temperature °F | 176 °F |
| Minimum Application Temperature °F | 50 °F |
| Minimum Service Temperature °F | -40 °F |
| Thickness (in/ft/yd) | 0.0088 in |
| Width (in/ft/yd) | 0.375 in |
Regulatory Information
| Contains CA PROP 65 Substance | Yes Contains-Label not req. |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliant | Yes |
| Contains CA PROP 65 Substance | No |
|---|---|
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
