Klein Tools 935DAA Digital Angle Gauge with Angle Alert, Dual Measurement 0-90 & 0-180 , IP54
- MPN: 935DAA
- UPC: 092644860096
- PPN: KLT-935DAA
- UNSPSC: 27111802
CAD
$55.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

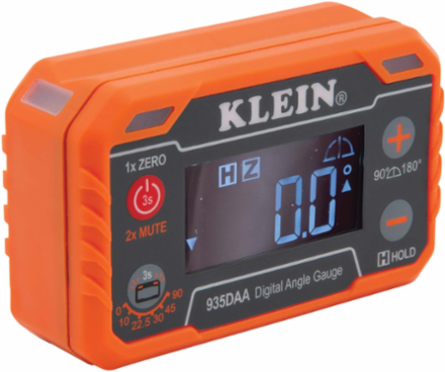

The Klein Tools Digital Angle Gauge with Angle Alert can measure or set angles, check relative angles, or be used as a digital level. Users can set defined angles easily and quickly. The Angle Alert features uses LEDs and a buzzer to notify the user when their desired angle is reached without looking at the screen. The strong magnetic base attaches to ferromagnetic surfaces such as conduit. The Digital Angle has dual measurement ranges of 0 to 90-Degree and 0 to 180-Degree and also has a high visibility reverse contrast display for easy viewing.
Features

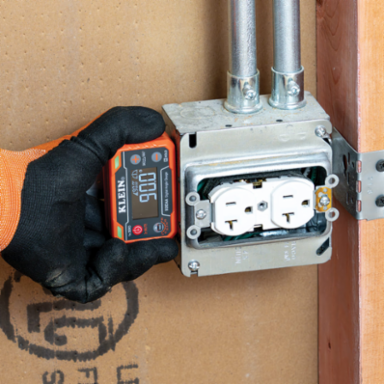

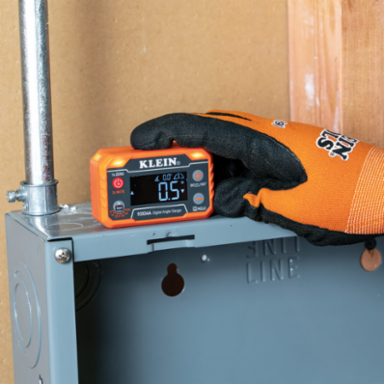

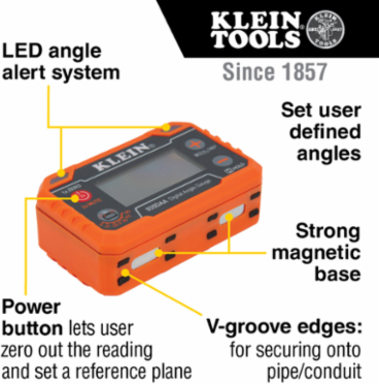

- This Digital Angle Gauge can measure or set angles, check relative angles with zero calibration feature, or can be used as a digital level

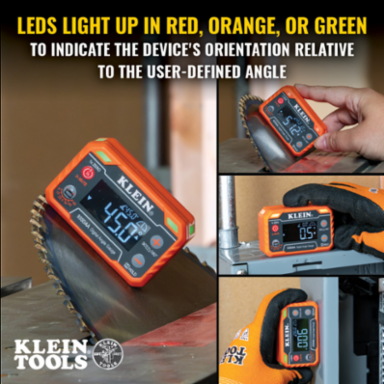

- LEDs light up red, orange, or green based on how close the device's orientation is to the user defined angle

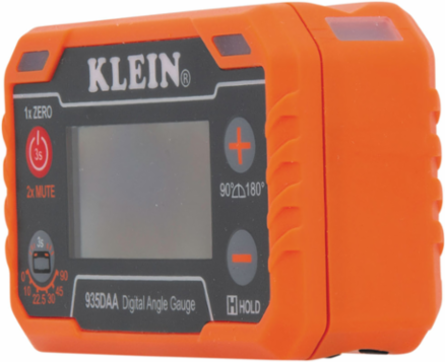

- Bright reverse contrast display is easy to see in all lighting conditions

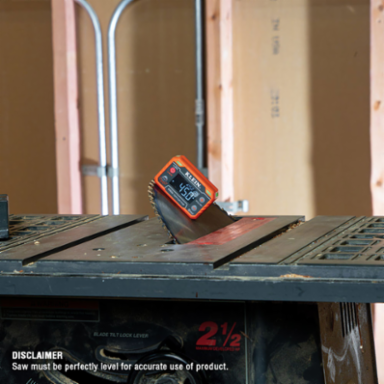

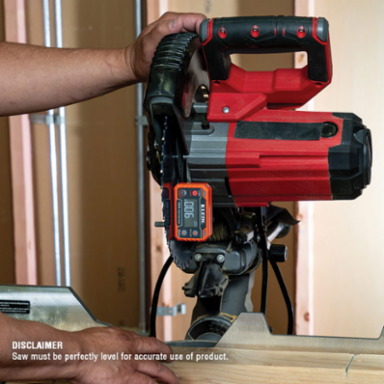

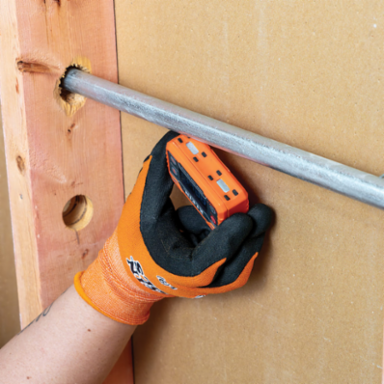

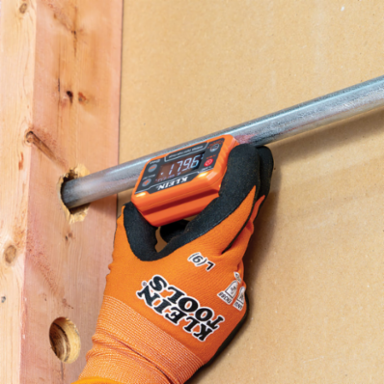

- Strong magnetic base attaches to conduit, pipes, saw blades, vents, ducts, and other ferromagnetic surfaces
- V-Grooves ensure a secure fit on the contours of conduit or pipe
- Display auto-rotates when upside-down for easy viewing
- Water and dust resistant with rating of IP54
- 3 Color LED Alerts, V-grooves On Top and Bottom Faces, Dual Measurement Ranges at 0° to 90° and 0° to 180°, Reverse Contrast
Documentation & Downloads
Specifications
Key Specifications
- Accuracy
- 0.1⁰ from 0⁰ to 1⁰ , 89⁰ to 91⁰, 179⁰ to 180⁰ and 0.2⁰ for all Other Angles (When Measuring Relative to the Magnetic Base)
- Low Battery Alarm
- No
- Included
- Digital Angle Gauge; Soft Carrying Case; Instruction Manual; Batteries
- Type
- Digital Level
- Magnet Type
- Permanent Rare-Earth
- Overall Width (cm)
- 7.2
- Overall Height (cm)
- 4.5
- Overall Length (Inch)
- 1.02
- Weight (oz)
- 3.2
- Height
- 1.7700 in
- Depth
- 2.8200 in

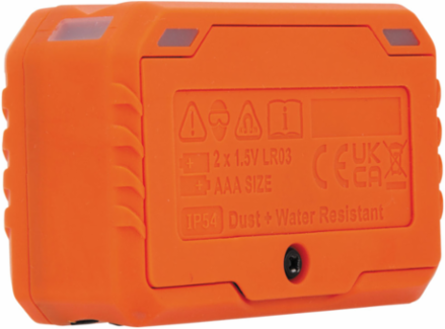

Batteries2 x 1.5 V AAA
MaterialPC/ABS Plastic Housing, TPR, PET and Electronic Components
Drop Protection6.6' (2 m)
Ingress ProtectionIP54 - Water and Dust Resistant
ApplicationMeasure or Set Angles, Check Relative Angles, or Use as a Digital Level
Overall Height (Inch)1.77
Overall Width (Inch)2.82
Weight (g)91
Overall Length (cm)2.6
Width1.0200 in
Weight0.1500 lbs
