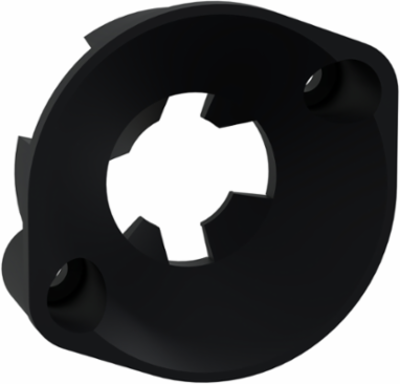

Schneider Electric GS2AEH12 TeSys GS Guiding Support with 10 x 10 mm Shaft Cross Section
- MPN: GS2AEH12
- PPN: SCH-GS2AEH12
CAD
$28.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys GS fusible disconnect switches with the use of Class CC or J fuses provide exceptional high short circuit protection. Switches are available from 30A to 800A sizes. SCCR of up to 200 kA are possible with these fusible disconnect switches. This shaft guide is used to guide the shaft form an external rotary handle into the switch. A GS2AE shaft extention will work with this shaft guide. Shaft guide will with GS2AH, GS2AHT, GS2AE, GS2AH and GS2AHT rotary handles. Shaft guide is UL component recognized and CSA certified.
Features
- The Schneider Electric GS2AEH12 shaft guide is specifically engineered for seamless mechanical integration with TeSys GS and FuPacT GS fusible disconnect switches rated at 30A. It features a universally adaptable cross-section design that flawlessly accommodates standard 10x10 mm, 12x12 mm, and 15x15 mm heavy-duty operating shafts. This eliminates field-modification guesswork and layout errors when matching your handle extensions with internal switches.
- Designed for direct-mounting configuration, this guiding support anchors securely onto the operating mechanism to ensure perfect axial alignment between the internal switch body and the external enclosure door handle. By bridging the physical gap between the GS2AE shaft extension and GS2AH or GS2AHT external rotary handles, it entirely eliminates shaft deflection and binding during high-torque manual operations. This guarantees a smooth, reliable throw every time you cycle the disconnect switch.
- This genuine Schneider Electric accessory is fully UL component recognized and CSA certified, making it immediately compliant for factory-built or field-modified control panel assemblies across North America. Incorporating this certified guide into your TeSys GS fusible switch infrastructure supports reliable, rapid manual isolation during emergencies, keeping your personnel safe and your facility fully compliant with local electrical codes.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, United States |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Shaft Cross Section | 10 x 10 mm, 12 x 12 mm, 15 x 15 mm |
| Local Publishable Date | 2026-07-07 |
| Stocking Flag | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1911 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | set of 1 |
| Returnability | Yes |
| Type Of Operating Handle | external |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 7326908688 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Traceability | No |
| Weee Applicability | Finished product |
| Weee Exclusion Rationale | Product/component not in scope – not electric/electronic device |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Mounting Support | direct mounting on handle |
| Product Or Component Type | guiding support |
| Range | TeSys |
| Sustainable Packaging | No |
| Accessory / Separate Part Category | control accessory |
| Package Weight(Lbs) | 28.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | guiding support |
|---|
ETIM
| ETIM 8 | EC002498 |
|---|
| ETIM 9 | EC002498 |
|---|
