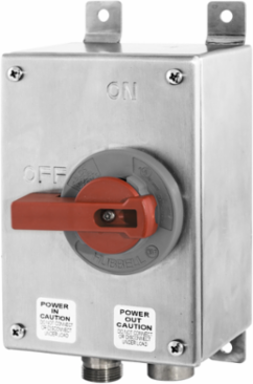

Hubbell Wiring Device-Kellems HBLDS3SSMQR2 Stainless Steel Disconnect Switch, 30A 600V AC, NEMA 4X, 8.5 in x 6 in x 4.12 in
- MPN: HBLDS3SSMQR2
- UPC: 783585372624
- PPN: HBL-HBLDS3SSMQR2
- UNSPSC: 39121521
CAD
$1993.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Disconnect Switches, Square top Enclosure, 30A 600V AC, Non-Fused, NEMA 4X, Stainless Steel, With 2) Pre-Wired LINKOSITY Receptacles
Features
- Formed in nonporous 304 stainless steel
- IP69k and Type 4X,12K water ingress protection
- Labelless markings on the cover
- Lockable Handle to Meet OSHA Lockout/Tagout Regulations
- Cable Ratings: TC-ER, MTW, STOOW
Specifications
Key Specifications
- Country of Origin
- Poland
- Height
- 4.12 in
- Industry Standard(s)
- Listed to UL 2238 and UL 50E;UL 508, Industrial Control Equipment File #E36355
- Length
- 8.5 in
- Current Rating
- 30
- Size
- 8.5 in x 6 in x 4.12 in
- Type
- Disconnect Switches
- Engineering Drawing 1 Display Text
- HBLDS3SSMQR2 AutoCAD Drawing
- General Literature Asset 2 Display Text
- Food Processing Guide
- Amperage Rating
- 30 A
- Dielectric Strength
- 2,200V AC minimum for 1 minute
- Phase
- Three Phase
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A16A260
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585372624
Dimensions8.5 in x 6 in x 4.12 in
Horsepower - Maximum15
Ingress ProtectionIP67
PerformanceElectrical - Dielectric Voltage - 2,200V AC minimum for 1 minute;Electrical - Electrical Life - 6,000 cycles with load;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V0 Classification;Environmental - Operating Temperature - Max. continuous 75°C, Min. continuous -40°C;Mechanical - Impact Resistance - UL746C;Mechanical - Mechanical Life - 10,000 minimum cycles;Mechanical - Terminal Accommodations - 30A, #14 AWG Min. - #10 AWG Max;Mechanical - Terminal Torque - 30A, 20 inch pounds
Enclosure TypeType 4X
StandardListed to UL 2238 and UL 50E;UL 508, Industrial Control Equipment File #E36355
Width6 in
General Literature Asset 1 Display TextSafety Product Guide
General Literature Asset 3 Display TextImproved Short Circuit Current Ratings (SCCR)
ConnectivityPre-Wired
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Wire Size#14 AWG to #10 AWG
Description - InvoiceDISC,3P 30A,UNFUSED,N4X,SS,2 MTRQCK RCPT
Harmonization Code8537109170
MSDS FlagNo
SeriesMotorQuick/LINKOSITY
BOX SIZE(in)
NAICS Code3353146111
Certifications
- EU RoHS Indicator
- Contact Manufacturer
