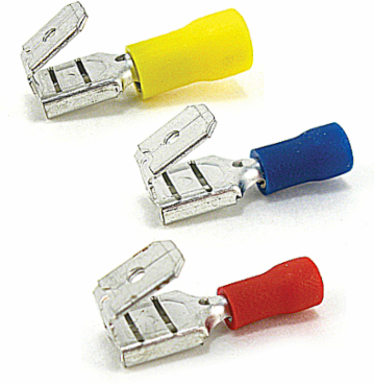

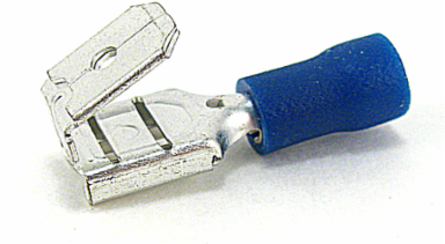

Catamount TV14-250PD-L 250 Series Insulated Vinyl Disconnects, 16-14 Wire Range, Blue
- MPN: TV14-250PD-L
- UPC: 786209937698
- PPN: T-B-TV14-250PD-L
CAD
$0.47
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Insulated Vinyl Piggy Back - 250 Series Disconnects for Wire Range 16-14 , Blue
Features
- Male and Female Tabs Combined. Additional conductors may be added to existing installations without changing blocks. Molded Insulator. Brazed Seam. Internal Barrel Serrations. Funnel Entry.
- Application Tools: WT112M, CM2000A
Specifications
Packaging
| Inner Quantity | 50 |
|---|---|
| Outer Quantity | 500 |
| Weight Uom | 2.5 lbs. per 1000 |
| Inner Dimensions (inches) | 7x4x.01 |
|---|---|
| Outer Dimensions (inches) | 11x8x18 |
North American Specifications (UNSPSC)
| UNSPSC | 39121447 Wire terminal disconnect |
|---|---|
| Brand Name | Catamount |
| Special Features | Male and Female Tabs Combined. Additional conductors may be added to existing installations without changing blocks. Molded Insulator. Brazed Seam. Internal Barrel Serrations. Funnel Entry. |
| Material | Brass with Copper Sleeve |
| Insulation | Vinyl |
| IGCC | 4667 Wire terminal disconnect |
|---|---|
| Type | Disconnects |
| Standard | UL E9809 |
| Color | Blue |
European Specifications (ETIM)
| ETIM | EC000516 Round or flat plug/receptacle |
|---|---|
| Colour insulation | Blue |
| Insulation | Partially Insulated |
|---|---|
| Material insulation | PVC |
