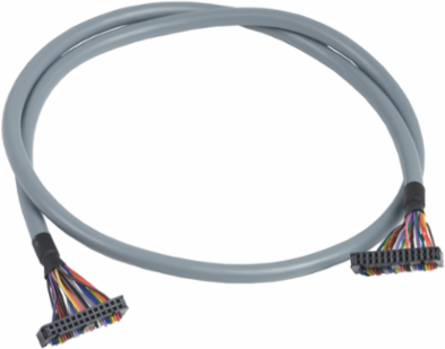

Telemecanique Sensors ABFT20E200 Discrete I/O Connecting Cable 2 Meter, AWG 28, 20-Way HE10 Connectors
Telemecanique Sensors ABFT20E200 Discrete I/O Connecting Cable 2 Meter, AWG 28, 20-Way HE10 Connectors
- MPN: ABFT20E200
- PPN: SCH-ABFT20E200
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$27.63/ EA
Description
This product is part of the Modicon ABE7 range, an offer of connection accessories for IP20 sub-bases. This discrete I/O connecting cable is suitable for modular base controller. The length of this cable is 2m. The cable has AWG 28 gauge with 0.08mm² cable cross section. It is furnished with 20-way HE10 connector for controller side and 20-way HE10 connector for Telefast ABE7 side. It weighs 0.14kg. It is suitable for all types of industrial applications. It is compatible with Advantys Telefast ABE7 and Twido range of products such as TWDDDO32TK, TWDDDI32DK, TWDDDI16DK and TWDDDO16TK. Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Specifications
Specifications
- Accessory / Separate Part Designation
- discrete I/O connecting cable
- Range Compatibility
- Advantys Telefast ABE7 || Twido
- Accessory / Separate Part Type
- connecting cable
Accessory / Separate Part Categoryconnection accessories
Product CompatibilityTWDDDO16TK || TWDDDI16DK || TWDDDI32DK || TWDDDO32TK
Accessory / Separate Part Destinationmodular base controller
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Complementary
- Height
- 20 mm
- Electrical Connection
- 1 connector HE10, 20 ways controller side || 1 connector HE10, 20 ways Telefast ABE7 side
- Cable Length
- 2 m
- Depth
- 180 mm
Awg GaugeAWG 28
Cable Cross Section0.08-0.08 mm²
Width165 mm
Net Weight0.14 kg
Contractual warranty
- Warranty
- 18 months
