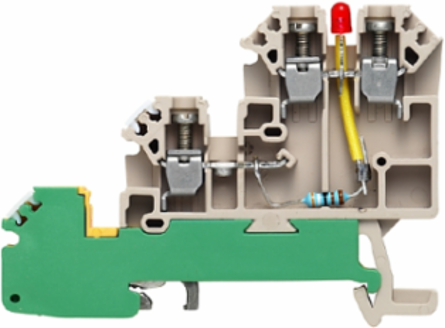

Weidmuller 1783620000 DLA 2.5/LD-RT/D DB
- MPN: 1783620000
- PPN: WDM-1783620000
CAD
$23.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
W-Series, Initiator/actuator terminal, Rated cross-section: 2.5 mm², Screw connection
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Display Element
| Current | 5 mA |
|---|---|
| Operating voltage for display, max. | 30 V |
| Type of voltage for indicator | DC |
| Indicator element | red |
|---|---|
| Operating voltage for display, min. | 5 V |
Dimensions And Weights
| Width | 6.1 mm |
|---|---|
| Height | 65 mm |
| Depth | 48.5 mm |
| Depth including DIN rail | 49 mm |
| Width (inches) | 0.24 inch |
|---|---|
| Height (inches) | 2.559 inch |
| Depth (inches) | 1.909 inch |
| Net weight | 14.98 g |
Dimensions
| TS 35 offset | 33 mm |
|---|
Additional Technical Data
| Electronic component | red LED |
|---|---|
| Number of similar terminals | 1 |
| Type of mounting | Snap-on |
| Explosion-tested version | No |
|---|---|
| Open sides | right |
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | dark beige |
|---|
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC000900 |
|---|---|
| eClass 9.0 | 27-14-11-28 |
| eClass 10.0 | 27-14-11-28 |
| ETIM 7.0 | EC000900 |
|---|---|
| eClass 9.1 | 27-14-11-28 |
| UNSPSC | 30-21-18-11 |
System Specifications
| Version | Screw connection, With PE connection, with LED, with diode |
|---|---|
| Number of potentials | 2 |
| Number of clamping points per level | 2 |
| Levels cross-connected internally | Yes |
| Rail | TS 35 |
| PE function | Yes |
| End cover plate required | Yes |
|---|---|
| Number of levels | 3 |
| Number of potentials per tier | 1 |
| PE connection | Yes |
| N-function | No |
| PEN function | No |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 120 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -50 °C |
Pe Rating Data
| PEN function | No |
|---|
Rating Data
| Rated cross-section | 2.5 mm² |
|---|---|
| Rated current | 17.5 A |
| Standards | IEC 60947-7-1 (-7-2) |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Pollution severity | 3 |
| Rated voltage | 30 V |
|---|---|
| Current at maximum wires | 17.5 A |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Rated impulse withstand voltage | 0.8 kV |
Conductors For Clamping (Rated Connection)
| Blade size | 0.6 x 3.5 mm |
|---|---|
| Clamping range, min. | 0.13 mm² |
| Connection cross-section, stranded, max. | 4 mm² |
| Connection direction | on side |
| Number of connections | 3 |
| Tightening torque, max. | 0.6 Nm |
| Torque level with DMS electric screwdriver | 1 |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Clamping range, max. | 4 mm² |
|---|---|
| Clamping screw | M 2.5 |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Gauge to IEC 60947-1 | A3 |
| Stripping length | 7 mm |
| Tightening torque, min. | 0.4 Nm |
| Type of connection | Screw connection |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
