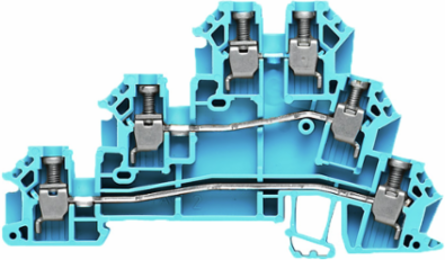

Weidmuller 6269250000 DLD 2.5 BL
Weidmuller 6269250000 DLD 2.5 BL
- MPN: 6269250000
- PPN: WDM-6269250000
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$12.96/ EA
Description
W-Series, Initiator/actuator terminal, Rated cross-section: 2.5 mm², Screw connection
Specifications
Approvals
- Approvals
- CE, CSA, EAC, GERMLLOYD, UR
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 6.2 mm
- Height
- 82 mm
- Depth
- 48.5 mm
- Depth including DIN rail
- 49 mm
Width (inches)0.244 inch
Height (inches)3.228 inch
Depth (inches)1.909 inch
Net weight16.86 g
Dimensions
- TS 35 offset
- 46 mm
Csa Rating Data
- Certificate No. (CSA)
- 12400-134
- Voltage size C (CSA)
- 300 V
- Wire cross section min. (CSA)
- 26 AWG
Current size C (CSA)10 A
Wire cross section max. (CSA)12 AWG
2 Clampable Conductors (H05V/H07V) With Equal Cross-Section (Rated Connection)
- Wire connection cross section, finely stranded, two clampable wires, min.
- 0.5 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.
- 0.5 mm²
Wire cross-section, finely stranded, two clampable wires, max.1 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.1 mm²
Additional Technical Data
- Number of similar terminals
- 1
- Type of mounting
- Snap-on
Open sidesright
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourblue
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000900
- eClass 9.0
- 27-14-11-28
- eClass 10.0
- 27-14-11-28
ETIM 7.0EC000900
eClass 9.127-14-11-28
UNSPSC30-21-18-11
System Specifications
- Version
- Screw connection, One end without connector
- Number of potentials
- 3
- Number of clamping points per level
- 2
- Levels cross-connected internally
- No
- Rail
- TS 35
- PE function
- No
End cover plate requiredYes
Number of levels3
Number of potentials per tier1
PE connectionNo
N-functionYes
PEN functionNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Rating Data
- Rated cross-section
- 2.5 mm²
- Rated current
- 24 A
- Standards
- IEC 60947-7-1
- Power loss in accordance with IEC 60947-7-x
- 0.77 W
- Pollution severity
- 3
Rated voltage250 V
Current at maximum wires24 A
Volume resistance according to IEC 60947-7-x3.99 mΩ
Rated impulse withstand voltage4 kV
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, min.
- 0.13 mm²
- Connection cross-section, stranded, max.
- 4 mm²
- Connection direction
- on side
- Number of connections
- 6
- Tightening torque, max.
- 0.6 Nm
- Torque level with DMS electric screwdriver
- 1
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 4 mm²
Clamping range, max.4 mm²
Clamping screwM 2.5
Connection cross-section, stranded, min.0.5 mm²
Gauge to IEC 60947-1A3
Stripping length7 mm
Tightening torque, min.0.4 Nm
Type of connectionScrew connection
Wire connection cross section AWG, min.AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.2.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring min. (UR)
- 26 AWG
- Conductor size Field wiring min. (UR)
- 22 AWG
- Voltage size D (UR)
- 300 V
Conductor size Factory wiring max. (UR)12 AWG
Conductor size Field wiring max. (UR)12 AWG
Current size D (UR)10 A
