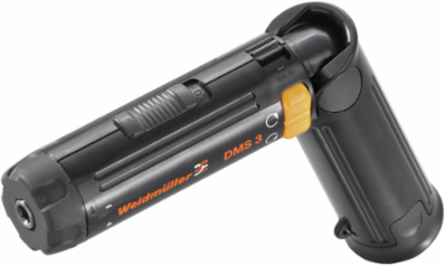

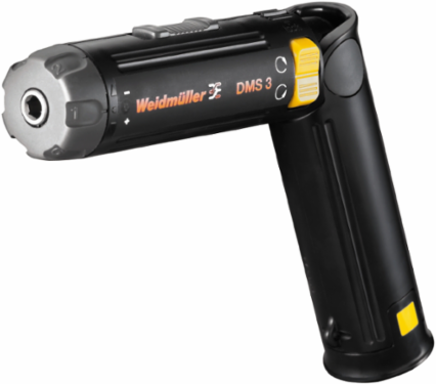

Weidmuller 9007440000 DMS 3
- MPN: 9007440000
- PPN: WDM-9007440000
CAD
$494.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mains-operated torque screwdriver, 1/4" DIN 3126 Form E6.3, 3
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 239 mm |
|---|---|
| Height | 127 mm |
| Weight | 400 g |
| Diameter | 35 mm |
| Width (inches) | 9.409 inch |
|---|---|
| Height (inches) | 5 inch |
| Net weight | 411.23 g |
Electric Screwdriver
| Battery voltage | 2.4 V |
|---|---|
| Charger input | 230 V AC; 50 Hz; 50 mA |
| Charging time | 45 min |
| Rated voltage | 2.4 V |
| Torque setting, max. | 3 Nm |
| Weight | 400 g |
| Weight of rechargeable battery | 122 g |
| Bit holder | 1/4" DIN 3126 Form E6.3 |
|---|---|
| Charger output | 2.9 V AC; 1.4 A; 4.1 VA |
| Idling speed | 200 u. 400 min-1 |
| Rechargeable batteries | Ni-Mh cells |
| Torque setting, min. | 0.3 Nm |
| Weight of charger | 700 g |
Classifications
| ETIM 6.0 | EC001395 |
|---|---|
| eClass 9.0 | 21-05-21-90 |
| eClass 10.0 | 21-05-21-90 |
| ETIM 7.0 | EC001395 |
|---|---|
| eClass 9.1 | 21-04-04-17 |
| UNSPSC | 27-11-27-20 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Technical Data
| Charging time | 45 min |
|---|
