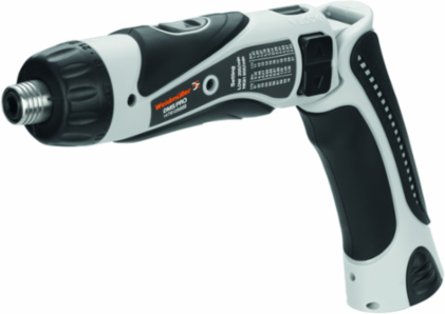

Weidmuller 1479120000 DMS PRO
- MPN: 1479120000
- PPN: WDM-1479120000
CAD
$589.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Tools, Mounting tool
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 276 mm |
|---|---|
| Height | 134 mm |
| Depth | 46 mm |
| Weight | 500 g |
| Width (inches) | 10.866 inch |
|---|---|
| Height (inches) | 5.276 inch |
| Depth (inches) | 1.811 inch |
| Net weight | 480 g |
Electric Screwdriver
| Battery voltage | 3.6 V |
|---|---|
| Charger input | AC 220-240V~50-60Hz 30W |
| Charging time | 30 min |
| Max. coupling torque | 3 Nm |
| Rechargeable batteries | Li-Ion battery |
| Torque setting, min. | 0.36 Nm |
| Bit holder | 1/4" DIN 3126 Form E6.3 |
|---|---|
| Charger output | DC 2.8...6V; 4.8A / 30W max. |
| Idling speed | 200 u. 600 min-1 |
| Rated voltage | 3.6 V |
| Torque setting, max. | 3 Nm |
| Weight | 500 g |
Classifications
| ETIM 6.0 | EC001395 |
|---|---|
| eClass 9.0 | 21-05-21-90 |
| eClass 10.0 | 21-05-21-90 |
| ETIM 7.0 | EC001395 |
|---|---|
| eClass 9.1 | 21-04-04-17 |
| UNSPSC | 27-11-27-20 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Technical Data
| Charging time | 30 min |
|---|
