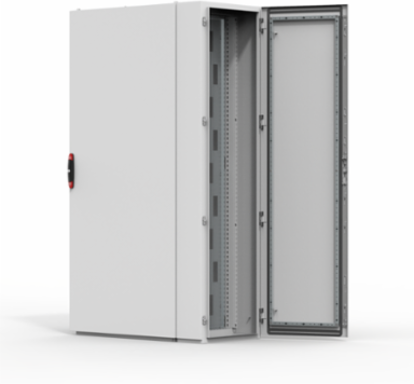

nVent Hoffman DNSR2005R5 Raised Side Doors, DNSR, 2000x500x195mm, Zinc Plated, Mild Steel
- MPN: DNSR2005R5
- UPC: 783510468736
- PPN: HOF-DNSR2005R5
- UNSPSC: 39121334
CAD
$1922.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Raised side doors protect and cover connectors and components mounted to the side of the enclosure. This Raised Side Doors, DNSR, DNSR2005R5 item measures 2000x500x195mm with a material of Mild Steel, finish Zinc Plated.
Features
- Description: A 200 mm wide cover with cable entrances in top and bottom. Supplied with one gland plate and gasket. Hole pattern equals enclosure's frame to mount cable fixing bars.
- Material: 2 mm.
- Finish: RAL 7035 structured powder coating.
- Protection: Complies with IP55, Type 12 in combination with HPPG01.
- Mounting requirements: Add a separation plate SPD or marshalling plate MM to mount connectors and separate the side compartment.
- Pack quantity: 1 piece with mounting accessories.
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 500 |
| Works With | IEC |
| Finish | Powder Coated |
| Thickness (T) | 2 |
| Weight | 40 |
| Size | 78.74 x 19.69 x 7.68 inch |
| Construction | 14 gauge |
| Height (H) | 2,000 |
|---|---|
| Depth (D) | 195 |
| Enclosure Material | Mild Steel |
| Color Code | RAL 7035 |
| Package Quantity | 1 |
| Material | Mild Steel |
| Color | RAL 7035 Light Gray |
