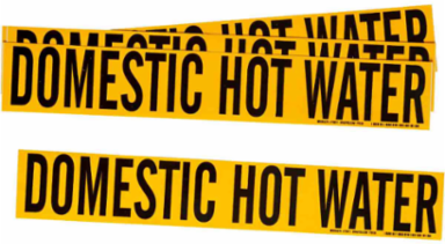

Brady 7087-1 Domestic Hot Water Pipe Marker, 2.25" H x 14" W, Fits Pipes 2.5" Dia. Thru 7.875" Dia.
- MPN: 7087-1
- UPC: 754473900724
- PPN: BRD-7087-1
- UNSPSC: 55121737
CAD
$4.19
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

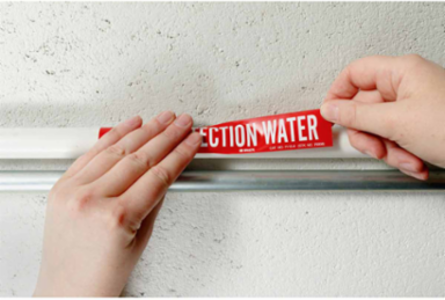

Self-sticking pipe markers from Brady® simplify installation with their factory-applied industrial-grade adhesives: simply peel off the backing and press the marker in place.
Features

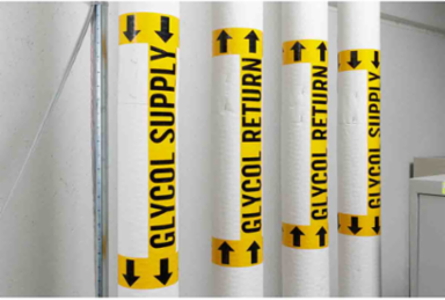

- Banding each end of a pipe marker with directional flow arrow tape is recommended
- Style 1 pipe markers measure 2-1/4 in. x 14 in., come one marker per card, and fit pipe diameter 2-1/2 in. to 7-7/8 in.
- High gloss, durable, flexible vinyl with a permanent cold temperature pressure sensitive acrylic adhesive
- Good chemical, oil and water resistance
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Pipe and Valve Marking
- Color
- Black on Yellow
- Enables Industry Compliance
- ANSI A13.1-2007
- Language
- English
- Pipe Marker Style
- 1
- Primary Noun, Basic Function
- Pipe Marker
- Reflective Type
- Non-Reflective
- Text Legend
- DOMESTIC HOT WATER
- Brady Material Number
- B-946
- Label Properties
- Aggressive Adhesive Labels; Permanent Adhesive Labels; Standard High Quality Labels
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; Water-Resisitant
- Average Outdoor Durability
- 8 to 10 Years
- Dimensions
- 2.25 in H x 14 in W
- Dimensions 2
- 2.25 in H x 14 in W
- Height (mm/cm/m)
- 57.2 mm
- Maximum Outside Pipe Diameter (mm/cm/m)
- 200.03 mm
- Maximum Service Temperature °F
- 180 °F
- Minimum Application Temperature °F
- 0 °F
- Minimum Outside Pipe Diameter (mm/cm/m)
- 63.5 mm
- Minimum Service Temperature °F
- -40 °F
- Roll/Tape Size (in/ft/yd)
- 2.25 in H x 14 in W
- Size
- 1
- Thickness (mm/cm/m)
- 0.102 mm
- Width (mm/cm/m)
- 35.56 cm
Brand NameBrady®
Compatible Surface TypesGeneral
FinishGloss
Pipe Marker Mounting StyleSelf-Adhesive
Pre-Printed Areas on LabelPipe Contents
Printer and Label ApplicationsGeneral Identification; Pipe Marker
Self-Adhesive Pipe Marker FormatDie-Cut on Cards
Adhesive TypePermanent Acrylic
Indoor or Outdoor UseOutdoor Use
MaterialVinyl
SAP B-NumberB-946
Character Height (in/ft/yd)2 in
Dimensions (Metric)57.2 mm H
Height (in/ft/yd)2.25 in
Maximum Outside Pipe Diameter (in/ft/yd)7.875 in
Maximum Service Temperature °C82 °C
Minimum Application Temperature °C-18 °C
Minimum Outside Pipe Diameter (in/ft/yd)2.5 in
Minimum Service Temperature °C-40 °C
Overall SizeFits Pipes 2.5" Dia. Thru 7.875in Dia.
Sign Size-General2.25 in x 14 in
Thickness (in/ft/yd)0.004 in
Width (in/ft/yd)14 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Not Applicable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
