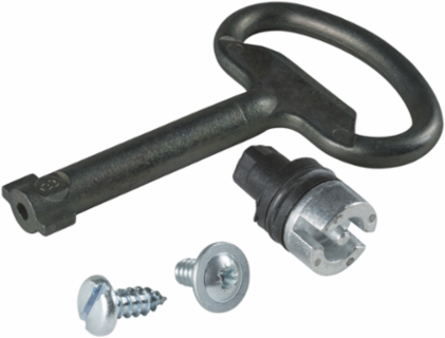

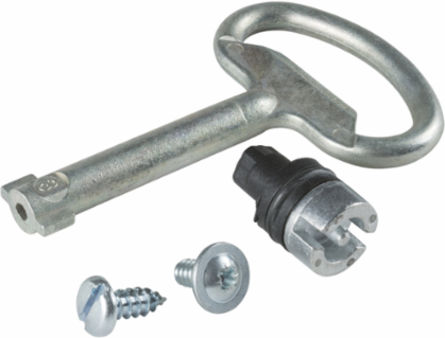

Schneider Electric NSYTDBCRN Double Bar Lock Insert 3mm Zamac, Multi-purpose Locking Accessory
- MPN: NSYTDBCRN
- PPN: SCH-NSYTDBCRN
- UNSPSC: 39121321
CAD
$4.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The NSYTDBCRN Double Bar Lock Insert by Schneider Electric is a versatile locking accessory designed to enhance the security of your IT enclosures and communication systems. Crafted from durable 3mm Zamac, this multi-purpose insert ensures reliable access control for sensitive equipment, making it an essential component for any automation and control setup. Its robust construction not only provides peace of mind but also integrates seamlessly with a range of applications, ensuring that your installations remain secure and efficiently managed.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Germany, Spain |
|---|
| Weight | 72 g |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Composition | 1 shape insert, 1 key |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.2 kg CO2 eq., 0.169261027 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0.3 kg CO2 eq., 0.31284853 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Mounting Support | direct mounting on standard lock |
| Product Or Component Type | lock insert |
| Range | PanelSeT |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 0.5 kg CO2 eq. |
| Data Source | extrapolated product |
| Accessory / Separate Part Type | insert for lock |
| Customs Code | 8301300090 |
| Functional Unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 98 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase A4 | 0.013859877, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.015964848, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-04-14 |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2041 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Device Application | multi-purpose |
| Lock Type | lock 3 mm double bar |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quantity Per Set | set of 1 |
| Returnability | No |
| Sustainable Packaging | No |
| Database Version | 2022-01 |
| Accessory / Separate Part Category | locking accessory |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 0.511934281 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1109023EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1109023EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-03-30 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | lock insert |
|---|
ETIM
| ETIM 8 | EC000743 |
|---|---|
| ETIM 10 | EC000743 |
| ETIM 9 | EC000743 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
