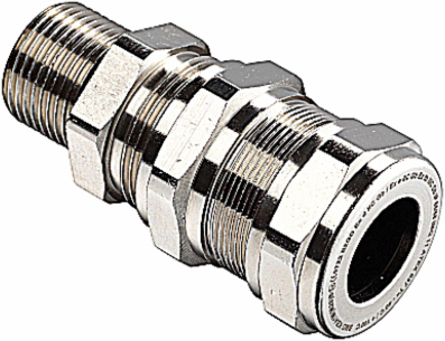

Kopex-ex EXN03ASC1 Double Compression Gland
Kopex-ex EXN03ASC1 Double Compression Gland
- MPN: EXN03ASC1
- PPN: T-B-EXN03ASC1
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$44.80/ EA
Description
Double Compression Cable Gland, 3/8 Inch NPT Thread, Flameproof Ex d and Increased Safety Ex e, Suitable for use with SWA, SWB, and AWA Conduit, IP66 Rating, Inner Cable Range 3 to 8.5mm, Outer Cable Range 6 to 12mm, Nickel Plated Brass
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121431 Cable gland connector
- Brand Name
- Kopex
- Application
- For Use with SWA (Steel Wired Armoured), AWA (Aluminum Wired Armour), and SWB (Steel Wired Braid) Conduit to Provide Secure Cable Connections Through Knockouts and Threaded Entries
- Size
- 3/8 Inch NPT
- Material
- Brass
- Color
- Metallic
- Temperature Rating
- -40 to 100 Degrees C
IGCC4601 Cable gland connector
TypeDouble Compression Gland
StandardUL Listed, Approved to EN60079-0, 60079-1, 60079-7, 60079-31
Conductor RangeInner 3 to 8.5mm, Outer 6 to 12mm
FinishNickel Plated
InsulationIP66 Rating
Environmental ConditionsFlameproof Ex d and Increased Safety Ex e, Suitable for Zones 1, 2, 21, 22
European Specifications (ETIM)
- ETIM
- EC000441 Cable screw gland
- Nominal thread size inch/gas pipe thread
- 3/8 inch
- Hexagon angular dimension
- 29mm
- Material
- Metal
- Surface protection
- Nickel-plated
- Glass-fibre reinforced
- N
- Shock resistant
- N
- Bend radius protection/trumpet flare
- N
- Model
- Straight
- Strain relief
- N
- Explosion-tested version
- Y
- For Ex-Zone dust
- 21, 22
Thread typeNPT
Thread length16mm
Suitable for cable diameter3.0-12.0mm
Material qualityBrass
Halogen freeN
Degree of protection (IP)IP68
ColourNatural colour
With locknutN
Flat cable couplingN
Operating temperature-40-+100°C
For Ex-zone gas1, 2
EMC-versionN
Packaging
- Inner Quantity
- 20
- Outer Quantity
- 120
- Weight Uom
- 0.53 lbs. Each
Inner Dimensions (inches)7.09x3.54x3.54
Outer Dimensions (inches)7.87x15.75x11.02
Downloads
