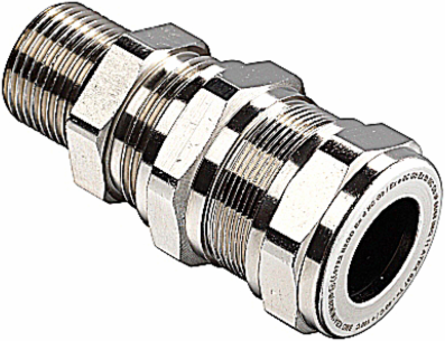

Kopex-ex EXN05AMC1 Double Compression Gland
- MPN: EXN05AMC1
- UPC: 786210194400
- PPN: T-B-EXN05AMC1
CAD
$66.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Double Compression Cable Gland, 3/4 Inch NPT Thread, Flameproof Ex d and Increased Safety Ex e, Suitable for use with SWA, SWB, and AWA Conduit, IP66 Rating, Inner Cable Range 12 to 16mm, Outer Cable Range 16 to 21mm, Nickel Plated Brass
Documentation & Downloads
Specifications
Packaging
- Inner Quantity
- 10
- Outer Quantity
- 70
- Weight Uom
- 0.97 lbs. Each
Inner Dimensions (inches)7.09x3.54x3.54
Outer Dimensions (inches)3.94x15.75x11.02
North American Specifications (UNSPSC)
- UNSPSC
- 39121431 Cable gland connector
- Brand Name
- Kopex
- Application
- For Use with SWA (Steel Wired Armoured), AWA (Aluminum Wired Armour), and SWB (Steel Wired Braid) Conduit to Provide Secure Cable Connections Through Knockouts and Threaded Entries
- Size
- 3/4 Inch NPT
- Material
- Brass
- Color
- Metallic
- Temperature Rating
- -40 to 100 Degrees C
IGCC4601 Cable gland connector
TypeDouble Compression Gland
StandardUL Listed, Approved to EN60079-0, 60079-1, 60079-7, 60079-31
Conductor RangeInner 12 to 16mm, Outer 16 to 21mm
FinishNickel Plated
InsulationIP66 Rating
Environmental ConditionsFlameproof Ex d and Increased Safety Ex e, Suitable for Zones 1, 2, 21, 22
European Specifications (ETIM)
- ETIM
- EC000441 Cable screw gland
- Nominal thread size inch/gas pipe thread
- 3/4 inch
- Hexagon angular dimension
- 37mm
- Material
- Metal
- Surface protection
- Nickel-plated
- Glass-fibre reinforced
- N
- Shock resistant
- N
- Bend radius protection/trumpet flare
- N
- Model
- Straight
- Strain relief
- N
- Explosion-tested version
- Y
- For Ex-Zone dust
- 21, 22
Thread typeNPT
Thread length21mm
Suitable for cable diameter12.0-21.0mm
Material qualityBrass
Halogen freeN
Degree of protection (IP)IP68
ColourNatural colour
With locknutN
Flat cable couplingN
Operating temperature-40-+100°C
For Ex-zone gas1, 2
EMC-versionN
