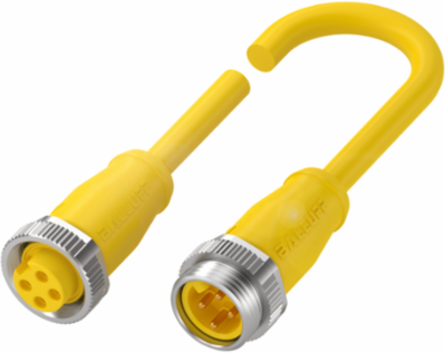

Balluff BCC A314-A314-30-304-EX44W6-006 Double-Ended Cordsets BCC A314-A314-30-304-EX44W6-006
- MPN: BCC A314-A314-30-304-EX44W6-006
- PPN: BAL-BCC0A8R
CAD
$80.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
With our robust double-ended cordsets, signals, data and power are transmitted continuously and securely. Choose the right connection for your application in your industry. Various cable types and plug connectors are available to you.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 300 VDC / 300 VAC
- Approval/Conformity
- cULus, EAC, WEEE
- Connection 2
- 7/8"-Male, straight, 4-pin
- Number of Conductors
- 4
- Cable Diameter
- 10.90 mm 60.25 mm
- Cable Rated Voltage AC Max
- 600 V
- Rated Current
- 10.0 A
- Tightening Torque
- 1.5 Nm
IP RatingIP67, IP68/IP67, IP68
Connection 17/8"-Female, straight, 4-pin
Cable Temperature, Fixed Routing-40 to 105 6C
CableTPE yellow, 0.60 m
Conductor Cross-Section16 AWG
Cable Rated Voltage DC Max600 V
MaterialCable jacket: TPE, Contact carrier: PUR/PUR, Contacts: Brass/Brass, Cover nut: Die-cast zinc, Grip: PUR/PUR
