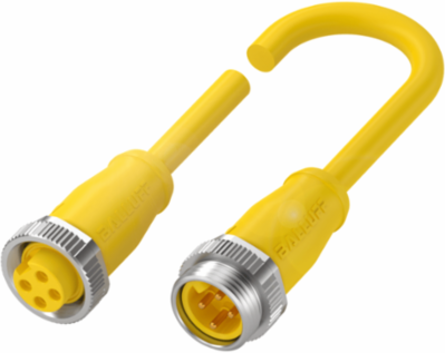

Balluff BCC A314-A314-30-304-EX44W6-100 Double-Ended Cordsets BCC A314-A314-30-304-EX44W6-100
- MPN: BCC A314-A314-30-304-EX44W6-100
- PPN: BAL-BCC0A8W
CAD
$204.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
With our robust double-ended cordsets, signals, data and power are transmitted continuously and securely. Choose the right connection for your application in your industry. Various cable types and plug connectors are available to you.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 300 VDC / 300 VAC
- Cable Rated Voltage AC Max
- 600 V
- Cable Length
- 10.00 m
- Number of Conductors
- 4
- Connection 1
- 7/8"-Female, straight, 4-pin
- Cable Temperature Range (Fixed Routing)
- -40 to 105 C
- Approval/Conformity
- cULus, EAC, WEEE
- Cable Jacket Color
- Yellow
- Contacts Material
- Brass/Brass
- Grip Material
- PUR/PUR
Rated Current10.0 A
Cable Rated Voltage DC Max600 V
Cable Diameter10.90 mm 0.25 mm
Conductor Cross-Section16 AWG
Connection 27/8"-Male, straight, 4-pin
IP RatingIP67, IP68
Cable Jacket MaterialTPE
Contact Carrier MaterialPUR/PUR
Cover Nut MaterialDie-cast zinc
Tightening Torque Pigtail1.5 Nm
