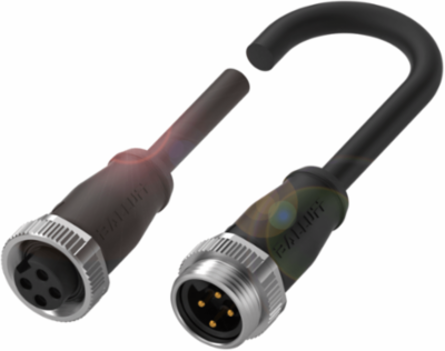

Balluff BCC A314-A314-30-304-PX04A5-020 Double-Ended Cordsets BCC A314-A314-30-304-PX04A5-020
- MPN: BCC A314-A314-30-304-PX04A5-020
- PPN: BAL-BCC06J3
CAD
$106.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
With our robust double-ended cordsets, signals, data and power are transmitted continuously and securely. Choose the right connection for your application in your industry. Various cable types and plug connectors are available to you.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 300 VDC / 300 VAC
- Number of Conductors
- 4
- Cable Diameter
- 8.00 mm 0.20 mm
- Connection 1
- 7/8"-Female, straight, 4-pin
- Cable Temperature Flexible Routing
- -20 to 80 C
- IP Rating
- IP67, IP68
- Cable Properties
- Drag chain compatible
Rated Current10.0 A
Cable Length2.00 m
Conductor Cross-Section1.5 mm2
Connection 27/8"-Male, straight, 4-pin
Cable Temperature Fixed Routing-50 to 80 C
Material Cable JacketPUR black
Approval/ConformitycULus, EAC, WEEE
