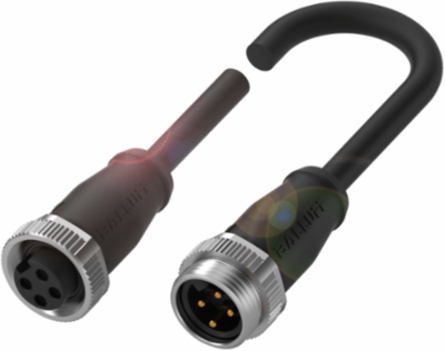

Balluff BCC A314-A314-30-304-PX04A5-050 Double-Ended Cordsets BCC A314-A314-30-304-PX04A5-050
- MPN: BCC A314-A314-30-304-PX04A5-050
- PPN: BAL-BCC06J4
CAD
$132.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
With our robust double-ended cordsets, signals, data and power are transmitted continuously and securely. Choose the right connection for your application in your industry. Various cable types and plug connectors are available to you.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 300 VDC / 300 VAC
- Cable Temperature Fixed Routing
- -50 to 80 C
- IP Rating
- IP67, IP68
- Number of Conductors
- 4
- Connection 2
- 7/8"-Male, straight, 4-pin
- Conductor Cross-Section
- 1.5 mm2
- Material Contacts
- Brass/Brass
- Material Cover Nut
- Die-cast zinc
- Approval/Conformity
- cULus, EAC, WEEE
Rated Current10 A
Cable Temperature Flexible Routing-20 to 80 C
Cable Length5.00 m
Connection 17/8"-Female, straight, 4-pin
Cable Diameter8.00 mm
Cable Jacket MaterialPUR
Material Contact CarrierPUR/PUR
Material GripPUR/PUR
