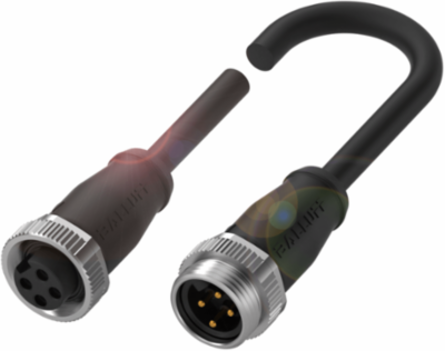

Balluff BCC A314-A314-30-304-PX04A5-200 Double-Ended Cordsets BCC A314-A314-30-304-PX04A5-200
- MPN: BCC A314-A314-30-304-PX04A5-200
- PPN: BAL-BCC0EC4
CAD
$339.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
With our robust double-ended cordsets, signals, data and power are transmitted continuously and securely. Choose the right connection for your application in your industry. Various cable types and plug connectors are available to you.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 300 VDC / 300 VAC
- Cable Temperature Fixed Routing
- -50 to 80 C
- IP Rating
- IP67, IP68/IP67, IP68
- Cable Length
- 20.00 m
- Conductor Cross-Section
- 1.5 mm2
- Connection 2
- 7/8"-Male, straight, 4-pin
- Material Contact Carrier
- PUR/PUR
- Material Cover Nut
- Die-cast zinc
- Bending Radius Fixed Cable
- 7.5 x Diameter
- Cable Bending Cycles Min.
- 5 million
- Cable Properties
- Drag chain compatible
Rated Current10.0 A
Cable Temperature Flexible Routing-20 to 80 C
Number of Conductors4
Cable Diameter8.00 mm 0.20 mm
Connection 17/8"-Female, straight, 4-pin
Material Cable JacketPUR black
Material ContactsBrass/Brass
Material GripPUR/PUR
Bending Radius Flexible Cable10 x Diameter
Approval/ConformitycULus, EAC, WEEE
