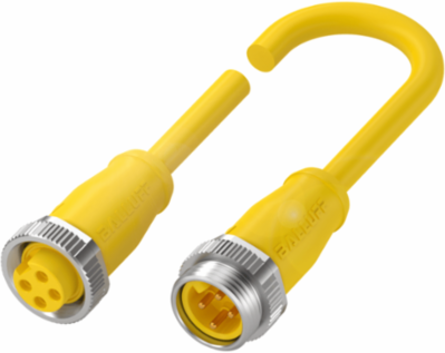

Balluff BCC A314-A314-30-346-VX44W6-010 Double-Ended Cordsets BCC A314-A314-30-346-VX44W6-010
- MPN: BCC A314-A314-30-346-VX44W6-010
- PPN: BAL-BCC07Y0
CAD
$84.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
With our robust double-ended cordsets, signals, data and power are transmitted continuously and securely. Choose the right connection for your application in your industry. Various cable types and plug connectors are available to you.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 300 VDC / 300 VAC
- IP Rating
- IP67, IP68/IP67, IP68
- Connection 1
- 7/8 in Female, straight, 4-pin
- Cable Length
- 1.00 m
- Material Contact Carrier
- PUR
- Material Cover Nut
- Die-cast zinc
- Cable Diameter
- 10.67 mm 0.25 mm
- Rated Current (40 C)
- 10.0 A
- Cable Rated Voltage DC Max
- 600 V
- Approval/Conformity
- cULus, EAC, WEEE
Cable Temperature Range, Fixed Routing-40 to 105 C
Number of Conductors4
Connection 27/8 in Male, straight, 4-pin
Cable Jacket Material and ColorPVC yellow
Material ContactsBrass
Material GripPUR
Conductor Cross-Section16 AWG
Cable Rated Voltage AC Max600 V
Tightening Torque Pigtail1.5 Nm
