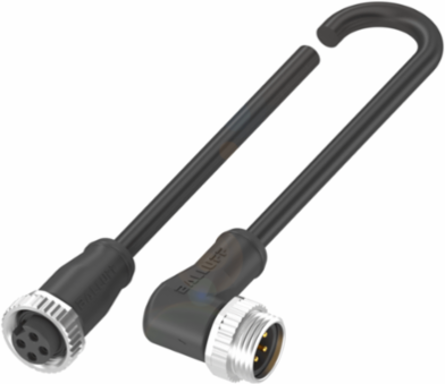

Balluff BCC A314-A324-30-304-PX04A5-006 Double-Ended Cordsets BCC A314-A324-30-304-PX04A5-006
- MPN: BCC A314-A324-30-304-PX04A5-006
- PPN: BAL-BCC06J7
CAD
$83.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
With our robust double-ended cordsets, signals, data and power are transmitted continuously and securely. Choose the right connection for your application in your industry. Various cable types and plug connectors are available to you.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 300 VDC / 300 VAC
- Cable Temperature, Fixed Routing
- -50 to 80 C
- Connection 1
- 7/8"-Female, straight, 4-pin
- Cable
- PUR black, 0.60 m, Drag chain compatible
- Approval/Conformity
- cULus, EAC, WEEE
- Conductor Cross-Section
- 1.5 mm2
- Bending Radius Min., Fixed Cable
- 7.5 x Diameter
- Acceleration Max., Drag Chain
- 5 m/s2
- Traverse Speed Max., Drag Chain
- 300 m/min
- Cable Jacket Material
- PUR
- Contact Material
- Brass
- Grip Material
- PUR/PUR
Cable Temperature, Flexible Routing-20 to 80 C
Number of Conductors4
Connection 27/8"-Male, angled, 4-pin
IP RatingIP67, IP68
Cable Diameter8.00 mm 0.20 mm
Cable Bending Cycles Min.5 million
Bending Radius Min., Flexible Cable10 x Diameter
Horizontal Travel Permitted, Drag Chain20 m
Tightening Torque Pigtail1.5 Nm
Contact Carrier MaterialPUR/PUR
Cover Nut MaterialDie-cast zinc
