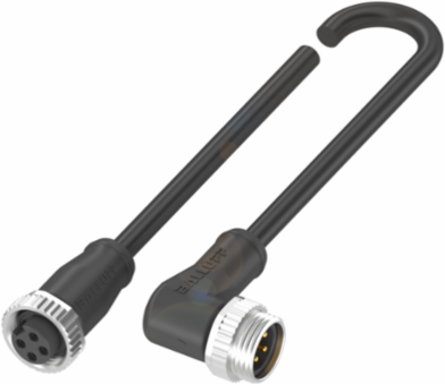

Balluff BCC A314-A324-30-304-PX04A5-150 Double-Ended Cordsets BCC A314-A324-30-304-PX04A5-150
- MPN: BCC A314-A324-30-304-PX04A5-150
- PPN: BAL-BCC06JC
CAD
$407.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
With our robust double-ended cordsets, signals, data and power are transmitted continuously and securely. Choose the right connection for your application in your industry. Various cable types and plug connectors are available to you.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 300 VDC / 300 VAC
- Cable Length
- 15.00 m
- Conductor Cross-Section
- 1.5 mm2
- Temperature Range Fixed Routing
- -50 to 80 C
- Connection 1
- 7/8 in Female, straight, 4-pin
- IP Rating
- IP67, IP68
- Material Contact Carrier
- PUR
- Material Cover Nut
- Die-cast zinc
- Cable Properties
- Drag chain compatible
- Acceleration Max
- 5 m/s2
- Traverse Speed Max
- 300 m/min
Number of Conductors4
Cable Diameter8.00 mm
Rated Current10 A
Temperature Range Flexible Routing-20 to 80 C
Connection 27/8 in Male, angled, 4-pin
Material Cable JacketPUR black
Material ContactsBrass
Material GripPUR
Horizontal Travel Permitted20 m
Tightening Torque Pigtail1.5 Nm
CompliancecULus, EAC, WEEE
