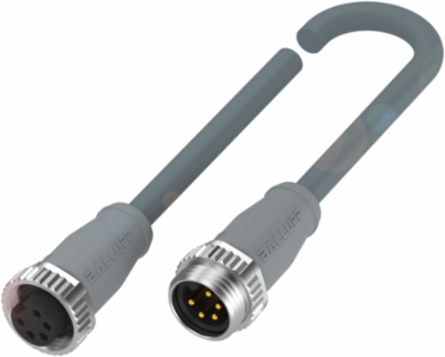

Balluff BCC A315-A315-30-330-PS85N6-010 Double-Ended Cordsets BCC A315-A315-30-330-PS85N6-010
- MPN: BCC A315-A315-30-330-PS85N6-010
- PPN: BAL-BCC08Z6
CAD
$87.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
With our robust double-ended cordsets, signals, data and power are transmitted continuously and securely. Choose the right connection for your application in your industry. Various cable types and plug connectors are available to you.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 300 V AC/DC
- Number of Conductors
- 4
- Connection 2
- 7/8"-Male, straight, 5-pin
- Cable Diameter
- 7.60 mm 0.25 mm
- Cable Jacket Material
- PUR
- Material Contacts
- Brass
- IP Rating
- IP67, IP68
- Interface
- DeviceNet
Rated Current4.0 A (40 C)
Connection 17/8"-Female, straight, 5-pin
Cable Length1.00 m
Conductor Cross-Section22 AWG/24 AWG
Cable ShieldAluminum foil, copper braid, stranded drain
Material Cover NutDie-cast zinc
ApprovalcULus, EAC, WEEE
Cable Jacket Colorgray
