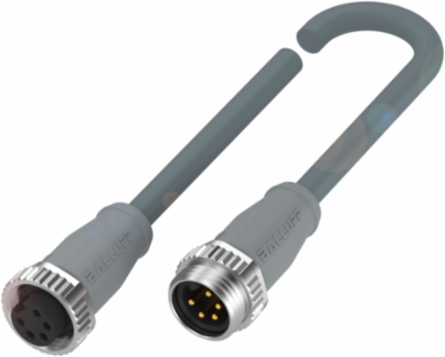

Balluff BCC A315-A315-30-330-PS85N6-060 Double-Ended Cordsets BCC A315-A315-30-330-PS85N6-060
- MPN: BCC A315-A315-30-330-PS85N6-060
- PPN: BAL-BCC08ZC
CAD
$221.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
With our robust double-ended cordsets, signals, data and power are transmitted continuously and securely. Choose the right connection for your application in your industry. Various cable types and plug connectors are available to you.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 300 VDC / 300 VAC
- Cable
- PUR shielded gray, 6.00 m, Drag chain compatible
- Connection 1
- 7/8"-Female, straight, 5-pin
- IP Rating
- IP67, IP68
- Cable Diameter
- 7.60 mm 0.25 mm
- Rated Current (40 C)
- 4.0 A
- Bending Radius Min, Flexible Cable
- 10 x D
- Material Contacts
- Brass
- Material Contact Carrier
- PUR
- Tightening Torque Pigtail
- 1.5 Nm
Number of Conductors4
InterfaceDeviceNet
Connection 27/8"-Male, straight, 5-pin
Approval/ConformitycULus, EAC, WEEE
Conductor Cross-Section22 AWG/24 AWG
Coupling Resistance Max120 Ohm 12 Ohm
Cable Bending Cycles Min1 million
Material Cover NutDie-cast zinc
Material GripPUR
