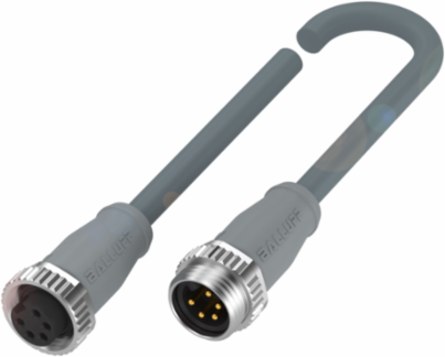

Balluff BCC A315-A315-30-330-PS85N6-150 Double-Ended Cordsets BCC A315-A315-30-330-PS85N6-150
- MPN: BCC A315-A315-30-330-PS85N6-150
- PPN: BAL-BCC08ZL
CAD
$386.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
With our robust double-ended cordsets, signals, data and power are transmitted continuously and securely. Choose the right connection for your application in your industry. Various cable types and plug connectors are available to you.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 300 VDC / 300 VAC
- IP Rating
- IP67, IP68
- Cable Diameter
- 7.60 mm 0.25 mm
- Number of Conductors
- 4
- Cable Jacket Material
- PUR
- Cable Shield
- Aluminum foil, copper braid and stranded drain
- Material Cover Nut
- Die-cast zinc
- Connection 1
- 7/8"-Female, straight, 5-pin
- Approval/Conformity
- cULus, EAC, WEEE
Rated Current4.0 A
Cable Length15.00 m
Bending Radius Minimum10 x D
Conductor Cross-Section22 AWG/24 AWG
Cable Jacket Colorgray
Material ContactsBrass
Material Contact CarrierPUR
Connection 27/8"-Male, straight, 5-pin
InterfaceDeviceNet
