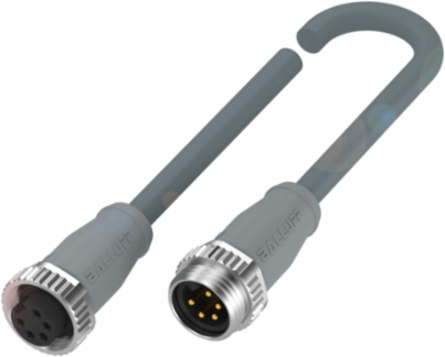

Balluff BCC A315-A315-30-330-VS85N4-010 Double-Ended Cordsets BCC A315-A315-30-330-VS85N4-010
- MPN: BCC A315-A315-30-330-VS85N4-010
- PPN: BAL-BCC07YY
CAD
$88.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
With our robust double-ended cordsets, signals, data and power are transmitted continuously and securely. Choose the right connection for your application in your industry. Various cable types and plug connectors are available to you.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 300 VDC / 300 VAC
- IP Rating
- IP67, IP68
- Connection 2
- 7/8 in male, straight, 5-pin
- Cable Jacket Material
- PVC
- Cable Shield Material
- Aluminum foil and copper braid
- Conductor Construction
- 2x2 twisted-pair
- Interface
- DeviceNet
- Material Contacts
- Brass/Brass
- Material Grip
- PUR/PUR
- Cable Diameter
- 12.10 mm 0.38 mm
- Coupling Resistance
- 120 Ohm 12 Ohm
- Line Attenuation at 1 MHz
- 0.40 dB/100 ft max
- Line Attenuation at 500 kHz
- 0.25 dB/100 ft max
Number of Conductors4
Connection 17/8 in female, straight, 5-pin
Cable Length1.00 m
Cable Jacket ColorGray
Conductor Cross-Section15 AWG/18 AWG
Approval/ConformitycULus, EAC, WEEE
Material Contact CarrierPUR/PUR
Material Cover NutDie-cast zinc
Tightening Torque Pigtail1.5 Nm
Rated Current (40 C)9.0 A
Conductor Resistance6.9 Ohm/1000 ft
Line Attenuation at 125 kHz0.13 dB/100 ft max
Operating Capacitance12 pF/ft
