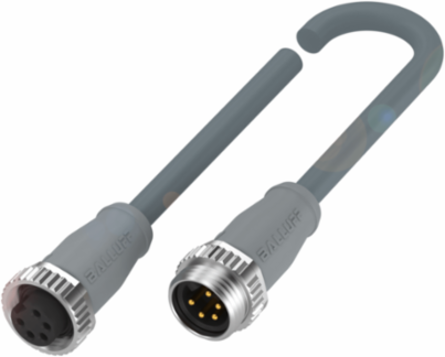

Balluff BCC A315-A315-30-330-VS85N4-030 Double-Ended Cordsets BCC A315-A315-30-330-VS85N4-030
- MPN: BCC A315-A315-30-330-VS85N4-030
- PPN: BAL-BCC07Z0
CAD
$115.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
With our robust double-ended cordsets, signals, data and power are transmitted continuously and securely. Choose the right connection for your application in your industry. Various cable types and plug connectors are available to you.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 300 VDC / 300 VAC
- Cable Length
- 3.00 m
- Connection 1
- 7/8"-Female, straight, 5-pin
- Cable Material
- PVC Shielded gray
- Interface
- DeviceNet
- Conductor Cross-Section
- 15 AWG/18 AWG
- Bending Radius Flexible Cable
- 10 x diameter
- Material Contacts
- Brass
- Material Contact Carrier
- PUR
- Ambient Temperature Range
- -40 to 80 C
- Coupling Resistance
- max. 120 Ohm 12 Ohm
- Conductor Construction
- 2x2 twisted-pair
Number of Conductors4
IP RatingIP67, IP68
Connection 27/8"-Male, straight, 5-pin
Approval/ConformitycULus, EAC, WEEE
Cable Diameter12.10 mm 0.38 mm
Bending Radius Fixed Cable6 x diameter
Cable Shield MaterialAluminum foil and copper braid
Material Cover NutDie-cast zinc
Material GripPUR
Rated Current9.0 A (40 C)
Conductor Resistance6.9 Ohm/1000 ft
