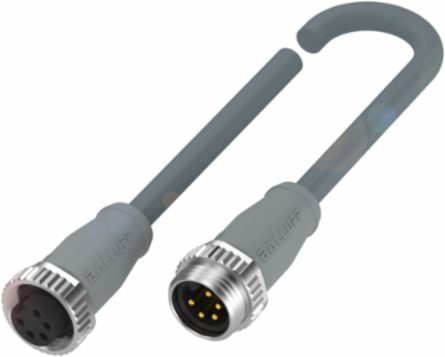

Balluff BCC A315-A315-30-330-VS85N4-100 Double-Ended Cordsets BCC A315-A315-30-330-VS85N4-100
- MPN: BCC A315-A315-30-330-VS85N4-100
- PPN: BAL-BCC07Z7
CAD
$251.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
With our robust double-ended cordsets, signals, data and power are transmitted continuously and securely. Choose the right connection for your application in your industry. Various cable types and plug connectors are available to you.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 300 VDC / 300 VAC
- Cable Length
- 10.00 m
- Cable Diameter
- 12.10 mm 0.38 mm
- Cable Shield
- Aluminum foil and copper braid
- Bending Radius Min Fixed Cable
- 6 x D
- Conductor Construction
- 2x2 twisted-pair
- Approval/Conformity
- cULus, EAC, WEEE
- Connection 1
- 7/8"-Female, straight, 5-pin
- Ambient Temperature
- -40 to 80 C
- Material Contacts
- Brass/Brass
- Material Grip
- PUR/PUR
- Cable Jacket Color
- gray
Rated Current9.0 A (40 C)
Number of Conductors4
Cable Jacket MaterialPVC
Conductor Cross-Section15 AWG/18 AWG
Bending Radius Min Flexible Cable10 x D
IP RatingIP67, IP68
InterfaceDeviceNet
Connection 27/8"-Male, straight, 5-pin
Material Contact CarrierPUR/PUR
Material Cover NutDie-cast zinc
Coupling Resistancemax. 120 Ohm 12 Ohm
SystemMolded/Molded
