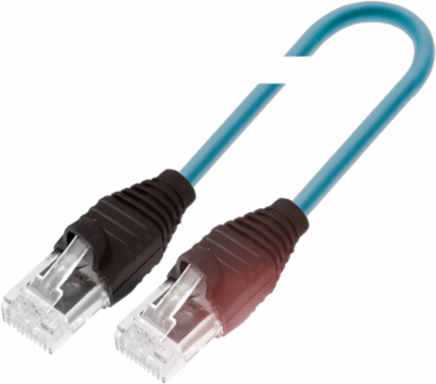

Balluff BCC E894-E894-90-339-ES64N9-010 Double-Ended Cordset 1m, TPE Shielded, RJ45 4-Pin
- MPN: BCC E894-E894-90-339-ES64N9-010
- PPN: BAL-BCC0E8L
CAD
$89.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Designed for robust performance in demanding environments, this double-ended cordset from Balluff is engineered to meet the needs of automation and control applications. With a flexible temperature range of -40 to 80 C, it ensures reliable operation even in extreme conditions. The cordset features a TPE shielded teal cable that is drag chain compatible, making it an ideal choice for dynamic applications. Equipped with two RJ45 male connectors and a 4-pin configuration, it supports both 42 VDC and 30 VAC operating voltages, while its IP20 rating guarantees protection against solid objects. This cordset is also CE, EAC, and WEEE compliant, ensuring adherence to international safety standards.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 42 VDC / 30 VAC
- Transfer Rate
- 10...100 Mbit/s
- Rated Voltage DC Max.
- 600 V
- Cable Length
- 1 m
- Cable Shield
- Aluminum foil, copper braid
- Number of Conductors
- 4
- Connector 2
- RJ45 Male, straight, 4-pin
- Bending Radius Min.
- 10 x cable diameter
- IP Rating
- IP20
Rated Current1.0 A
Rated Voltage AC Max.600 V
Cable Temperature Range-40 to 80 C
Cable MaterialTPE
Cable ColorTeal
Connector 1RJ45 Male, straight, 4-pin
Cable Diameter6.10 mm 0.25 mm
Bending Cycles Min.10 million
ComplianceCE, EAC, WEEE
