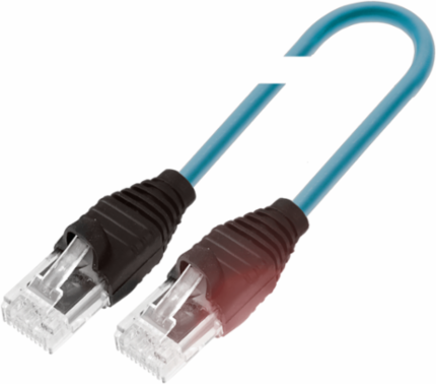

Balluff BCC E894-E894-90-339-ES64N9-020 Double-Ended Cordset, 4 Conductors, TPE Shielded, 2 Meter Length
- MPN: BCC E894-E894-90-339-ES64N9-020
- PPN: BAL-BCC0E8F
CAD
$106.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Designed for flexibility and reliability, the Double-Ended Cordsets from Balluff are ideal for various automation and control applications. This cordset features a robust TPE shielded cable that is drag chain compatible, ensuring durability even in demanding environments. With a temperature range of -40 to 80 °C and an IP20 rating, it is well-suited for a variety of industrial settings. The cordset includes two RJ45 male connectors with a 4-pin configuration, supporting an operating voltage of up to 42 VDC / 30 VAC, making it a versatile choice for your connectivity needs.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 42 VDC / 30 VAC
- Cable Rated Voltage DC Max
- 600 V
- Transfer Rate
- 10...100 Mbit/s
- Cable Length
- 2 m
- Bending Radius Min, Flexible Cable
- 10 x Diameter
- Connector Type
- RJ45 Male, straight, 4-pin
- Approval/Conformity
- CE, EAC, WEEE
Cable Rated Voltage AC Max600 V
Rated Current1.0 A (40 °C)
Cable Temperature Range, Flexible Routing-40 to 80 °C
Cable Diameter6.10 mm ±0.25 mm
Number of Conductors4
MaterialTPE, Aluminum foil, Copper braid
IP RatingIP20
