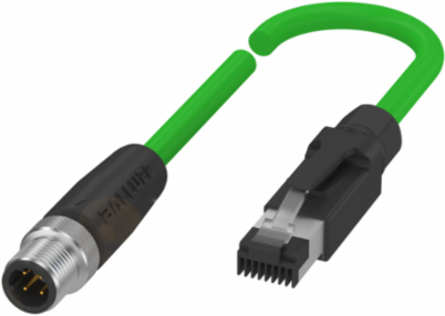

Balluff BCC M414-E834-8G-668-PS54N2-006 Double-Ended Cordsets BCC M414-E834-8G-668-PS54N2-006
- MPN: BCC M414-E834-8G-668-PS54N2-006
- PPN: BAL-BCC0JEZ
CAD
$92.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
With our robust double-ended cordsets, signals, data and power are transmitted continuously and securely. Choose the right connection for your application in your industry. Various cable types and plug connectors are available to you.
Documentation & Downloads
Specifications
Key Specifications
| Cable | PUR Shielded Green, 0.60 m, Drag chain compatible |
|---|---|
| Connection 2 | RJ45-Male, straight, 4-pin |
| Number of conductors | 4 |
| Cable temperature, flexible routing | -20-60 °C |
| IP rating | IP67/IP20 |
| Connection 1 | M12x1-Male, straight, 4-pin, D-coded |
|---|---|
| Interface | Profinet |
| Cable temperature, fixed routing | -40-80 °C |
| Operating voltage Ub | 125 VDC / 125 VAC |
| Approval/Conformity | CE, EAC, WEEE |
