Balluff

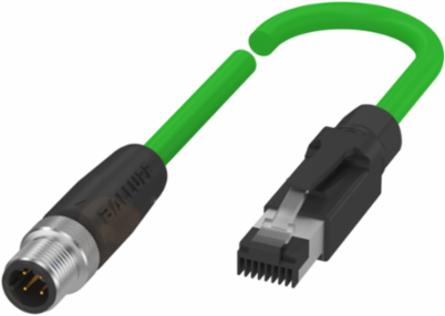

Balluff BCC M414-E834-8G-668-PS54N2-100 Double-Ended Cordset, 10 Meter, 4 Conductors, IP67/IP20

  • MPN: BCC M414-E834-8G-668-PS54N2-100
  • PPN: BAL-BCC0JF3

CAD

$197.69

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Designed for robust industrial applications, the Balluff double-ended cordset offers exceptional connectivity with its Profinet interface and four conductors. This 10-meter cable features a durable PUR shielded construction, making it suitable for both flexible and fixed routing, withstanding temperatures from -40 C to 80 C. Equipped with an M12x1 male connector on one end and an RJ45 male connector on the other, it ensures reliable performance and compliance with industry standards, including CE and EAC approvals. With an IP67/IP20 rating, this cordset is built to endure harsh environments, making it an ideal choice for demanding automation and control systems.

Documentation & Downloads

Specifications

Additional

Operating Voltage125 VDC / 125 VAC
IP RatingIP67/IP20
Cable Temperature Fixed Routing-40 to 80 B0C
Cable Length10 m
Connection 2RJ45 Male, straight, 4-pin
Bending Radius Fixed Cable5 x Diameter
Cable Jacket MaterialPUR, Shielded, green, Drag chain compatible
Material ContactsBrass
Material GripPUR/PA
InterfaceProfinet
Number of Conductors4
Cable Temperature Flexible Routing-20 to 60 B0C
Transfer Rate10-100 Mbit/s
Connection 1M12x1 Male, straight, 4-pin, D-coded
Cable Diameter6.70 mm B1 0.30 mm
Bending Radius Flexible Cable15 x Diameter
Material Contact CarrierPUR
Material Cover NutBrass, nickel plated
Cable ShieldAluminum foil and copper braid
ComplianceCE, EAC, WEEE
Double-Ended Cordset, 10 Meter, 4 Conductors, IP67/IP20
