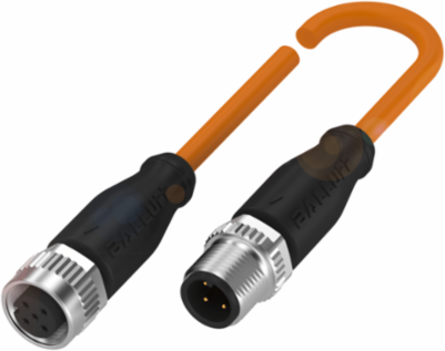

Balluff BCC M415-M414-3A-304-PW3434-050 Double-Ended Cordset, M12x1, 5m, 4-Pin, IP67/IP68/IP69K
- MPN: BCC M415-M414-3A-304-PW3434-050
- PPN: BAL-BCC0872
CAD
$65.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Engineered for robust performance in demanding environments, the Double-Ended Cordsets from Balluff are designed to facilitate reliable connections in automation and control applications. Featuring an M12x1-Female, straight, 5-pin, A-coded connection on one end and an M12x1-Male, straight, 4-pin, A-coded connection on the other, this cordset ensures compatibility with a variety of devices. With a durable PUR welding spark-resistant orange cable measuring 5 meters, it is not only drag chain compatible but also rated for extreme conditions, boasting an impressive temperature range of -50 to 90 °C for fixed routing and -25 to 90 °C for flexible routing. The IP67, IP68, and IP69K ratings guarantee protection against dust and water ingress, making it an ideal choice for industrial settings where reliability is paramount.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 250 VDC / 250 VAC
- Connection 1
- M12x1-Female, straight, 5-pin, A-coded
- Rated Current
- 4.0 A
- Cable Material
- PUR welding spark resistant, orange
- Cable Temperature Fixed Routing
- -50 to 90 0C
- Approval/Conformity
- cULus, EAC, WEEE
- Conductor Cross-Section
- 0.34 mmb2
- Bending Radius Flexible Cable
- 10 x D
- Cable Torsion Stress
- b1360b0/m
- Cable Temperature Max Flexible Routing
- 80 b0C
- Application
- Welding area
- Horizontal Travel Permitted Drag Chain
- 5 m
- Traverse Speed Max Drag Chain
- 200 m/min
- Material Contact Carrier
- PUR/PUR
- Material Cover Nut
- Die-cast zinc
Number of Conductors4
Connection 2M12x1-Male, straight, 4-pin, A-coded
Cable Length5 m
IP RatingIP67, IP68, IP69K
Cable Temperature Flexible Routing-25 to 90 0C
Cable Diameter4.30 mm b10.10 mm
Bending Radius Fixed Cable5 x D
Cable Bending Cycles Min10 million
Cable Temperature Max Fixed Routing80 b0C
Cable Temperature Drag Chain-25 to 60 b0C
Acceleration Max Drag Chain5 m/sb2
Vertical Travel Permitted Drag Chain2 m
Tightening Torque Pigtail0.6 Nm
Material ContactsBronze/Brass
Material GripPUR/PUR
