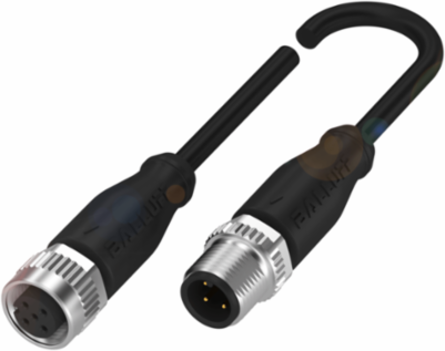

Balluff BCC M415-M414-3A-304-PX0434-030 Double-Ended Cordset, M12x1 4-Pole, IP67/68/69K, 3 m Cable
- MPN: BCC M415-M414-3A-304-PX0434-030
- PPN: BAL-BCC039N
CAD
$41.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Designed for robust industrial applications, the Double-Ended Cordsets from Balluff exemplify reliability and versatility in connectivity solutions. With an impressive IP67, IP68, and IP69K rating, these cordsets are engineered to withstand harsh environments, ensuring optimal performance even in challenging conditions. Featuring a combination of M12x1-Male and M12x1-Female connections, this 4-pole A-coded cordset supports both fixed and flexible routing with a wide operating temperature range, making it ideal for various automation and control applications. The durable PUR black cable, measuring 3 meters, is drag chain compatible, providing both longevity and flexibility for your connectivity needs.
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 250 VDC / 250 VAC |
|---|---|
| IP Rating | IP67, IP68, IP69K |
| Connection 1 | M12x1-Female, straight, 5-pole, A-coded |
| Number of Conductors | 4 |
| Cable Jacket Color | Black |
| Cable Temperature Flexible Routing | -25 to 90 C |
| Material Contact Carrier | PUR/PUR |
| Cable Diameter | 4.7 mm 0.2 mm |
| Approval/Conformity | cULus, EAC, WEEE |
| Cable Bending Cycles Min | 5 million |
| Bending Radius Min Fixed Cable | 5 x cable diameter |
| Acceleration Max Drag Chain | 5 m/sB2 |
| Vertical Travel Max Drag Chain | 5 m |
| Traverse Speed Max Drag Chain | 200 m/min |
| Rated Current | 4.0 A |
|---|---|
| Cable Length | 3 m |
| Connection 2 | M12x1-Male, straight, 4-pole, A-coded |
| Cable Jacket Material | PUR |
| Cable Temperature Fixed Routing | -50 to 90 C |
| Material Contacts | Bronze/Brass |
| Material Cover Nut | Die-cast zinc |
| Conductor Cross-Section | 0.34 mmB2 |
| Drag Chain Compatible | Yes |
| Cable Torsion Stress | B1180B0/m |
| Bending Radius Min Flexible Cable | 10 x cable diameter |
| Horizontal Travel Max Drag Chain | 5 m |
| Tightening Torque Pigtail | 0.6 Nm |
