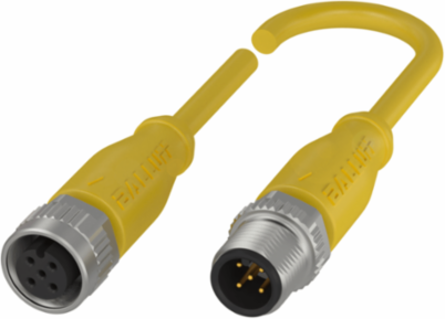

Balluff BCC M415-M415-3A-313-EX45T2-100 Double-Ended Cordset, 10.00 m, M12x1 5-Pin Connections, IP67/IP68/IP69K

MPN: BCC M415-M415-3A-313-EX45T2-100
PPN: BAL-BCC08AC

$79.31

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Designed for reliability in demanding environments, the Double-Ended Cordset from Balluff is an essential component for automation and control systems. Featuring a robust M12 connection with both female and male ends, this cordset is built to withstand extreme temperatures ranging from -50 C to 105 C for fixed routing and -25 C to 105 C for flexible applications. With a 10-meter TPE cable that is drag chain compatible and rated for IP67, IP68, and IP69K, it ensures durability and protection against dust and water ingress. This cordset is not only CE, cULus, and EAC approved but also supports an operating voltage of 60 VDC / 60 VAC, making it a versatile choice for various connectivity needs in industrial settings.

Documentation & Downloads

Specifications

Additional

Operating Voltage	60 VDC / 60 VAC
Cable Temperature Fixed Routing	-50 to 105 C
IP Rating	IP67, IP68, IP69K
Connection 1	M12x1-Female, straight, 5-pin, A-coded
Number of Conductors	5
Cable Jacket Color	Yellow
Conductor Cross-Section	22 AWG
Bending Radius Flexible Cable	10 x cable diameter
Material Contacts	Bronze, Brass
Material Grip	PUR
Tightening Torque Pigtail	0.6 Nm

Rated Current	4.0 A at 40 C
Cable Temperature Flexible Routing	-25 to 105 C
Cable Length	10.00 m
Connection 2	M12x1-Male, straight, 5-pin, A-coded
Cable Jacket Material	TPE
Cable Diameter	5.60 mm 0.13 mm
Bending Radius Fixed Cable	5 x cable diameter
Material Contact Carrier	PUR
Material Cover Nut	Die-cast zinc
Cable Properties	Drag chain compatible
Compliance	CE, cULus, EAC, WEEE
