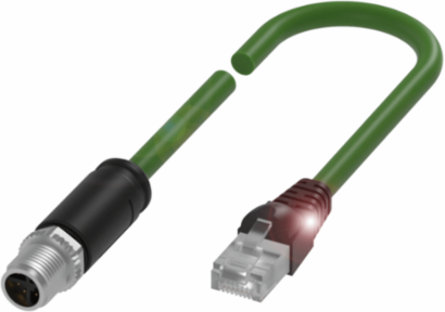

Balluff BCC M418-E818-8X0-723-PS58N9-100 Double-Ended Cordsets BCC M418-E818-8X0-723-PS58N9-100
- MPN: BCC M418-E818-8X0-723-PS58N9-100
- PPN: BAL-BCC0HZM
CAD
$232.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
With our robust double-ended cordsets, signals, data and power are transmitted continuously and securely. Choose the right connection for your application in your industry. Various cable types and plug connectors are available to you.
Documentation & Downloads
Specifications
Key Specifications
| Cable | PUR Shielded green, 10 m |
|---|---|
| Connection 2 | RJ45-Male, straight, 8-pin |
| Cable temperature, fixed routing | -40-85 °C |
| Operating voltage Ub | 60 VDC / 50 VAC |
| Approval/Conformity | CE, cULus, EAC, WEEE |
| Connection 1 | M12x1-Male, straight, 8-pin, X-coded |
|---|---|
| Number of conductors | 8 |
| Cable temperature, flexible routing | -10-60 °C |
| IP rating | IP67/IP20 |
