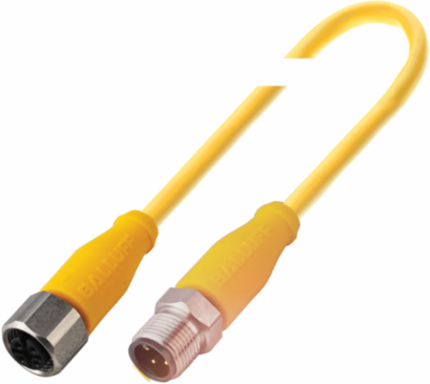

Balluff BCC S415-S414-3A-304-VX44T2-020 Double-Ended Cordsets BCC S415-S414-3A-304-VX44T2-020
- MPN: BCC S415-S414-3A-304-VX44T2-020
- PPN: BAL-BCC0CHE
CAD
$61.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
With our robust double-ended cordsets, signals, data and power are transmitted continuously and securely. Choose the right connection for your application in your industry. Various cable types and plug connectors are available to you.
Documentation & Downloads
Specifications
Key Specifications
| Cable | PVC yellow, 2 m |
|---|---|
| Connection 2 | M12x1-Male, straight, 4-pin, A-coded |
| Cable temperature, fixed routing | -40-105 °C |
| Operating voltage Ub | 250 VDC / 250 VAC |
| Approval/Conformity | cULus, EAC, Ecolab, WEEE |
| Connection 1 | M12x1-Female, straight, 5-pin, A-coded |
|---|---|
| Number of conductors | 4 |
| Cable temperature, flexible routing | -5-105 °C |
| IP rating | IP67, IP68, IP69K/IP67, IP68, IP69K |
