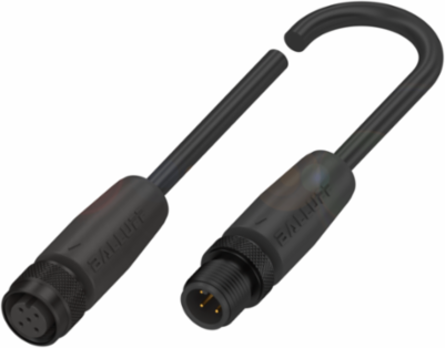

Balluff BCC W415-W414-3A-304-SW0434-010 Double-Ended Cordset, 1.00 m, M12x1 5-Pin to 4-Pin, IP65

MPN: BCC W415-W414-3A-304-SW0434-010
PPN: BAL-BCC0ELZ

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$67.20/ EA

Qty:

Loading add to cart quantity...

Description

Designed for robust automation and control applications, this double-ended cordset from Balluff features a reliable M12 connection system, ensuring secure and efficient connectivity in various industrial environments. With a 5-pin A-coded female connector on one end and a 4-pin A-coded male connector on the other, this cordset supports a wide range of configurations and is built to withstand challenging conditions, boasting an impressive temperature range of -40 to 200 °C for fixed routing and -25 to 200 °C for flexible routing. The silicone cable is not only spark resistant but also rated IP65, providing excellent protection against dust and water ingress, making it an ideal choice for applications where safety and connectivity are paramount. With approvals including cULus and EAC, this cordset meets high standards of reliability and performance, ensuring it can handle the demands of modern automation systems.

Specifications

Cable: Silicone welding spark resistant black, 1.00 m

Connection 2: M12x1-Male, straight, 4-pin, A-coded

Cable temperature, fixed routing: -40-200 °C

Operating voltage Ub: 250 VDC / 250 VAC

Approval/Conformity: cULus, EAC, WEEE

Connection 1M12x1-Female, straight, 5-pin, A-coded

Number of conductors4

Cable temperature, flexible routing-25-200 °C

IP ratingIP65/IP65
