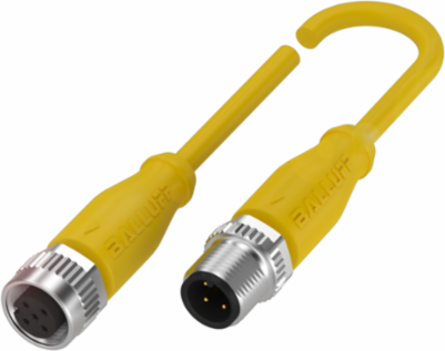

Balluff BCC M415-M414-3A-304-EX44T2-100 Double-ended cordsets - BCC05M3
- MPN: BCC M415-M414-3A-304-EX44T2-100
- PPN: BAL-BCC05M3
CAD
$70.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Double-ended cordsets - BCC05M3
Documentation & Downloads
Specifications
Additional
- Rated Current
- 4.0 A
- Number of Conductors
- 4
- Cable Temperature Range, Fixed Routing
- -50 to 105 C
- Ingress Protection Rating
- IP67, IP68, IP69K
- Connection 1
- M12x1 Female, straight, 5-pin, A-coded
- Cable Material
- TPE
- Cable Length
- 10 m
- Cable Diameter
- 5.30 mm 0.13 mm
- Bending Radius, Flexible Cable
- 10 x D
- Conductor Cross-Section
- 22 AWG
- Material Contacts
- Gold plated
- Material Cover Nut
- Die-cast zinc
- Flame Resistance
- IEC 332-2
Operating Voltage250 VDC / 250 VAC
Cable Temperature Range, Flexible Routing-25 to 105 C
Switching OutputComplementary
Approval/ConformityCE, cULus, WEEE
Connection 2M12x1 Male, straight, 4-pin, A-coded
Cable ColorYellow
Cable PropertiesDrag chain compatible
Bending Radius, Fixed Cable5 x D
Cable Bending Cycles10 million
Tightening Torque Pigtail0.6 Nm
Material Contact CarrierPUR
Material GripPUR
Country of OriginUnited States
