nVent Hoffman CED12 Double Protection Gland M12, IP67, Light Gray, 20x20x12.8mm, EPDM

MPN: CED12
UPC: 783510457426
PPN: HOF-CED12

$113.08

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

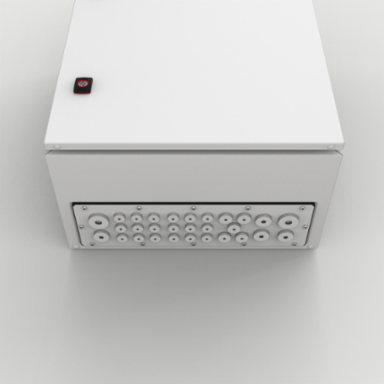

The rubber cable gland is easy to mount, cables and pipes can be pulled through easily without tools. This Double Protection Cables Entry For Wall Mounted Enclosures, CED, CED12 item measures 20x20x12.8mm has a material of EPDM color Light Gray, finish Smooth.

Features

Description: The rubber grommet is very simple to use. The installation does not require tools, which in turn means lower work cost. The “pushout” membrane is a permanent seal until it is penetrated by a cable or pipe. Suitable for holes in materials of 0.5 to 4 mm thickness.
Material: EPDM, halogen free.
Temperature resistance: -40 ºC to +110 ºC.
Finish: RAL 7035.
Protection: IP 67.
The protection degree is maintained if the outside layer fails due to damage or external circumstances
The double layer sock is the optimal solution if the outside layer is exposed to external circumstances such as high pressure water
A potential disadvantage of the double layer however is that cables only pass through straight
A single layer sock is available (CES) to allow cable passing through with an angle but the protection degree might be at risk if this single layer fails

Documentation & Downloads

Specifications

Key Specifications

BABA	Contact Manufacturer
Width (W)	20
Height 1 (H1)	5.6
Cable Diameter Range	4
Material	EPDM
Color	Light Gray
Package Quantity	50
Protection Rating	IP67
Enclosure Material	Mild Steel
