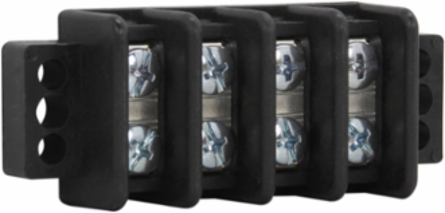

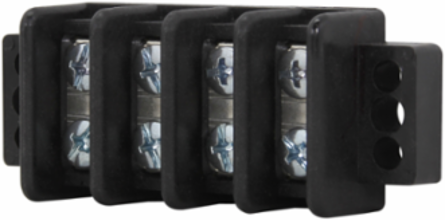

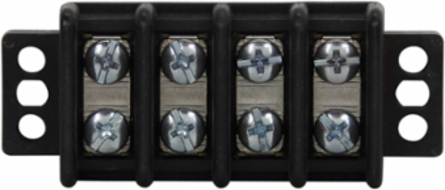

Bussmann TB300-03 Double Row Terminal Block, 10.2 Inch Length, 30A Amperage, 600V Voltage
- MPN: TB300-03
- UPC: 051712810548
- PPN: BUS-TB300-03
CAD
$6.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Double Row Terminal Block, 10.2 Inch Length, 30A Amperage, 600V Voltage
Documentation & Downloads
Specifications
Key Specifications
| Height | 3.7 IN |
|---|---|
| Width | 8.9 IN |
| Special Features | Breakdown voltage 7500V |
| Amperage Rating | 30A |
| Connection | #8-32 TPI Screw |
| Mounting | Screw |
| Torque Rating | 16 lb-in |
| Number Of Poles | Three-pole |
| Length | 10.2 IN |
|---|---|
| Weight | .116 LB |
| Type | Double row, barrier |
| Voltage Rating | 600V |
| Material | Tin-plated brass terminal, Zinc-plated Steel philslot screw |
| Operating Temperature | -40° to 130°C |
| Color | Black |
