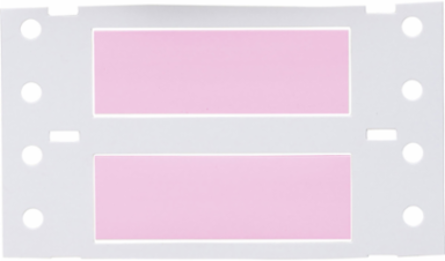

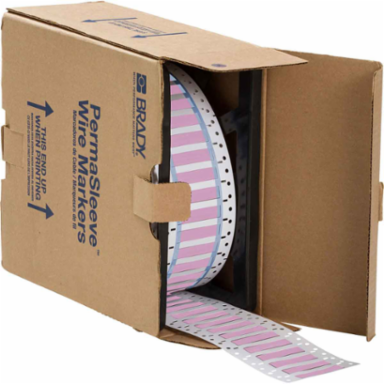

Brady 3PS-500-2-PK-S Double Sided PermaSleeve Polyolefin Wire Marking Sleeves, Pink, 0.5" Dia x 2" W
- MPN: 3PS-500-2-PK-S
- UPC: 662820896821
- PPN: BRD-3PS-500-2-PK-S
- UNSPSC: 55121612
CAD
$720.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
Features
- 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
- Fade-resistant and smudge-proof for superior aesthetic appearance
- Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
- Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Wire and Cable Labeling
- Color
- Pink
- Finish
- Matte
- Label/Media Format
- Roll
- Max. Lines of Text
- 5
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility (Print)
- BBP72
- Quantity per Row
- 1
- Ribbon Series
- R6600
- Shrink Ratio
- 3:1
- Total Qty per Pack
- 250 Sleeve(s) / Roll
- Trade Name
- PermaSleeve®
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Flame-retardant; Heat-shrinkable
- SAP B-Number
- B-342
- Diameter as Supplied (in/ft/yd)
- 0.5 in
- Dimensions
- 0.851 in H
- Dimensions 2
- 0.851 in H
- Height (mm/cm/m)
- 21.60 mm
- Maximum Service Temperature °F
- 275 °F
- Maximum Wire Diameter (mm/cm/m)
- 11.43 mm
- Minimum Service Temperature °C
- -55 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.187 in
- Minimum Wire Gauge
- 8 AWG
- Recovered Diameter (mm/cm/m)
- 4.8 mm
- Roll Width (mm/cm/m)
- 50.8 mm
- Sleeve Size (in/ft/yd)
- 0.5 in Dia x 2 in W
- Sleeve Width (in/ft/yd)
- 2 in
- Vertical Repeat
- 1.25 in
- Web Width (mm/cm/m)
- 89.00 mm
- Wire Gauge Range
- 8 AWG to 1 AWG
Brand NameBrady®
Enables Industry ComplianceASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
For Use with PrinterBBP®72 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Markers per Roll250
Primary Noun, Basic FunctionSleeve
Printable SidesDouble-Side Printable
Printer CompatibilityBBP72
Quantity per Roll250
Recommended RibbonIP-R6600; R6600
ShapeRectangle
Suggested Ribbon SeriesR4300; R4502S; R5000; R6600; R6700
Total Quantity250
Brady Material NumberB-342
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
Core Diameter (mm/cm/m)76.20 mm
Diameter as Supplied (mm/cm/m)12.7 mm
Dimensions (Metric)50.80 mm W x 21.60 mm H
Height (in/ft/yd)0.851 in
Maximum Service Temperature °C135 °C
Maximum Wire Diameter (in/ft/yd)0.45 in
Maximum Wire Gauge1 AWG
Minimum Service Temperature °F-67 °F
Minimum Wire Diameter (mm/cm/m)4.75 mm
Recovered Diameter (in/ft/yd)0.187 in
Roll Width (in/ft/yd)2 in
Size - Width (mm)50.80 mm
Sleeve Size (mm/cm/m)12.7 mm Dia x 50.8 mm W
Sleeve Width (mm/cm/m)50.8 mm
Vertical Repeat (mm)31.75 mm
Wire Diameter Range0.187 in to 0.45 in
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
