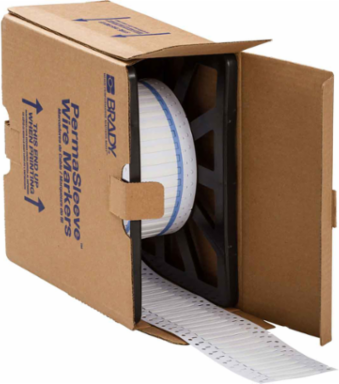

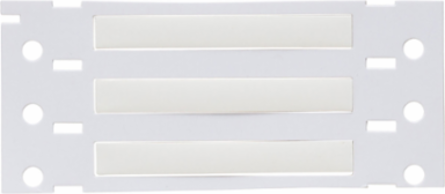

Brady 3PS-125-2-WT Double Sided PermaSleeve Polyolefin Wire Marking Sleeves, White, 0.125" Dia x 2" W, Roll of 2500 Each
- MPN: 3PS-125-2-WT
- UPC: 662820325079
- PPN: BRD-3PS-125-2-WT
- UNSPSC: 55121612
CAD
$2513.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
Features
- 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
- Fade-resistant and smudge-proof for superior aesthetic appearance
- Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
- Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Wire and Cable Labeling
- Color
- White
- Finish
- Matte
- Label/Media Format
- Roll
- Max. Lines of Text
- 1
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Double-Side Printable
- Printer Compatibility
- BBP72
- Quantity per Roll
- 2500
- Recommended Ribbon
- IP-R6600; R6600
- Shape
- Rectangle
- Suggested Ribbon Series
- R4300; R4502S; R5000; R6600; R6700
- Total Quantity
- 2500
- Brady Material Number
- B-342
- Material
- Heat-shrink Polyolefin
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
- Core Diameter (mm/cm/m)
- 76.20 mm
- Diameter as Supplied (mm/cm/m)
- 3.2 mm
- Dimensions (Metric)
- 50.80 mm W x 6.00 mm H
- Height (in/ft/yd)
- 0.235 in
- Maximum Service Temperature °C
- 135 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.11 in
- Maximum Wire Gauge
- 16 AWG
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (mm/cm/m)
- 1.17 mm
- Recovered Diameter (in/ft/yd)
- 0.046 in
- Roll Width (in/ft/yd)
- 2 in
- Size - Width (mm)
- 50.80 mm
- Sleeve Size (mm/cm/m)
- 3.2 mm Dia x 50.8 mm W
- Sleeve Width (mm/cm/m)
- 50.8 mm
- Vertical Repeat (mm)
- 12.70 mm
- Wire Diameter Range
- 0.046 in to 0.11 in
Brand NameBrady®
Enables Industry ComplianceASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
For Use with PrinterBBP®72 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Markers per Roll2500
National Stock Number (NSN)7690015862081
Print TechnologyThermal Transfer
Printer and Label ApplicationsWire & Cable
Printer Compatibility (Print)BBP72
Quantity per Row1
Ribbon SeriesR6600
Shrink Ratio3:1
Total Qty per Pack2500 Sleeve(s) / Roll
Trade NamePermaSleeve®
Label PropertiesHeat Shrink Sleeves
Material PropertiesFlame-retardant; Heat-shrinkable
SAP B-NumberB-342
Diameter as Supplied (in/ft/yd)0.125 in
Dimensions0.235 in H
Dimensions 20.235 in H
Height (mm/cm/m)6.00 mm
Maximum Service Temperature °F275 °F
Maximum Wire Diameter (mm/cm/m)2.79 mm
Minimum Service Temperature °C-55 °C
Minimum Wire Diameter (in/ft/yd)0.046 in
Minimum Wire Gauge22 AWG
Recovered Diameter (mm/cm/m)1.2 mm
Roll Width (mm/cm/m)50.8 mm
Sleeve Size (in/ft/yd)0.125 in Dia x 2 in W
Sleeve Width (in/ft/yd)2 in
Vertical Repeat0.5 in
Web Width (mm/cm/m)89.00 mm
Wire Gauge Range22 AWG to 16 AWG
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
