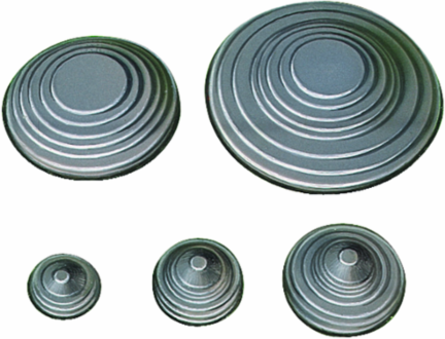

Schneider Electric NSYECPC5 PVC Adjustable Cone-shaped Cable Entries Set of 25, 5-26 mm Diameter
Schneider Electric NSYECPC5 PVC Adjustable Cone-shaped Cable Entries Set of 25, 5-26 mm Diameter
- MPN: NSYECPC5
- PPN: SCH-NSYECPC5
- UNSPSC: 39121324
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1.11/ EA
Description
Designed for versatility, these adjustable cone-shaped entries from Schneider Electric are crafted from durable PVC, making them ideal for various multi-purpose applications. With a cable outer diameter range of 5-26 mm, they provide a reliable solution for managing cable entries in distribution and protection boxes. Each set contains 25 entries, featuring a drilling diameter of 29.5 mm, ensuring a snug fit for your installation needs. Manufactured in Spain, these components are not only practical but also backed by an 18-month warranty, affirming their quality and reliability in any project.
Features
- PVC adjustable cone-shaped entries for enclosure thickness 30/10e - 32/10e mm.
- Material: PVC
- Cable entry material: Soft membrane
- Cable glands to be fitted: Not applicable
- Installation options: On cable gland plate or directly on enclosure
- Flexibility of the installation: Low
- Reversibility: Medium
- Ingress protection rating: IP55 according to IEC 60529
- Cable retention: Low
- Cable diameter (mm): From 5 to 87
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Device Application
- multi-purpose
- Material
- PVC (polyvinyl chloride)
- Package Weight Lbs
- 8.000 g
- Product Or Component Type
- adjustable cone-shaped entry
- Returnability
- No
- Accessory Separate Part Category2
- cable management accessory
- Stocking Flag
- Y
- Pep Code
- ENVPEP1001004EN
- Drilling Diameter
- 29.5 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Publishable Date2025-09-16
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Device Composition1 cable entry
Mounting Supportdistribution and protection box
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 25
Sustainable PackagingNo
Medium DescPVC adjustable cone-shaped entries 33.3x3mm. Composition : 25
Product Kit IdentifierN
Cable Outer Diameter5-26 mm
Global Commercial StatusCommercialised
General Attributes
- Product Or Component Type
- adjustable cone-shaped entry
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
Pep CodeENVPEP1001004EN
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
